034751 DODGE - P2B-PSEZ-35M-P

Brand - DODGE
Item Number - 034751 DODGE - P2B-PSEZ-35M-P
Category - E-Z Kleen Mounted Bearings (PSEZ Polymer Sleeve, Polymer Housed Pillow Blocks)
Series - 207
Shaft Size (mm) - 35
Description - P2B-PSEZ-35M-P
Weight (kg) - 0.48

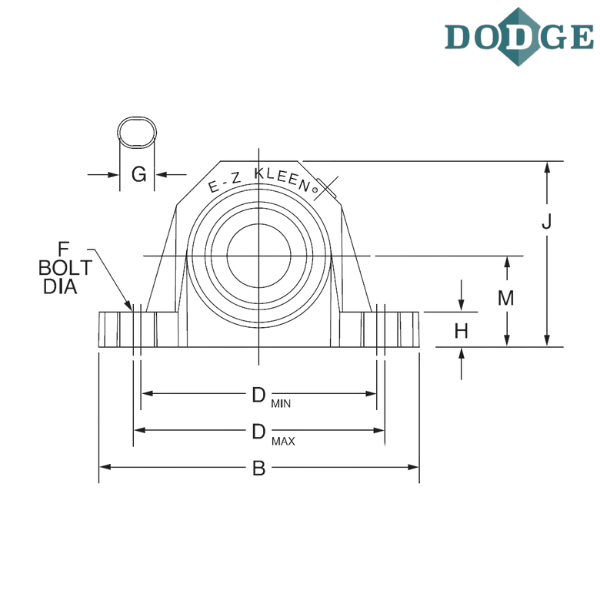

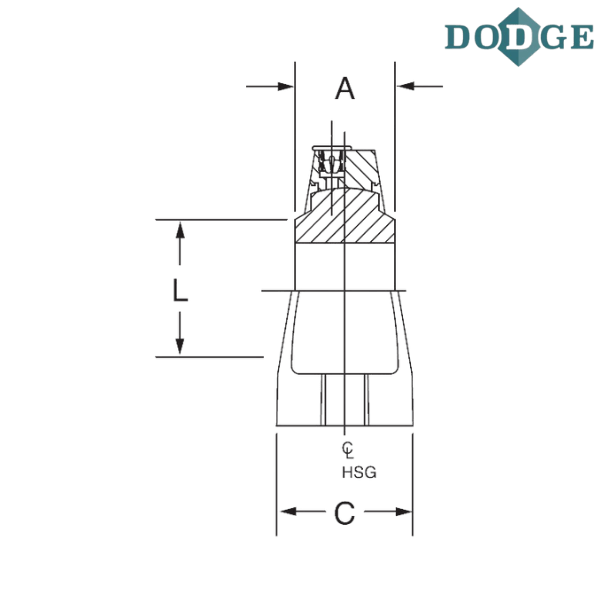

Length Through Bore (A) mm - 33.3
Overall Length (B) mm - 166.3
Overall Width (C) mm - 47.8
Bolt to Bolt Minimum Distance (D min) mm - 122.2
Bolt to Bolt Maximum Distance (D max) mm - 130.2
F-Bolt Diameter - M12
G (mm) - 18.3
H (mm) - 18.3
Overall Height (J) mm - 98.8
L (mm) - 50.8
Base to Center Height (M) mm - 47.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
PS - Polymer Sleeve Insert
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing

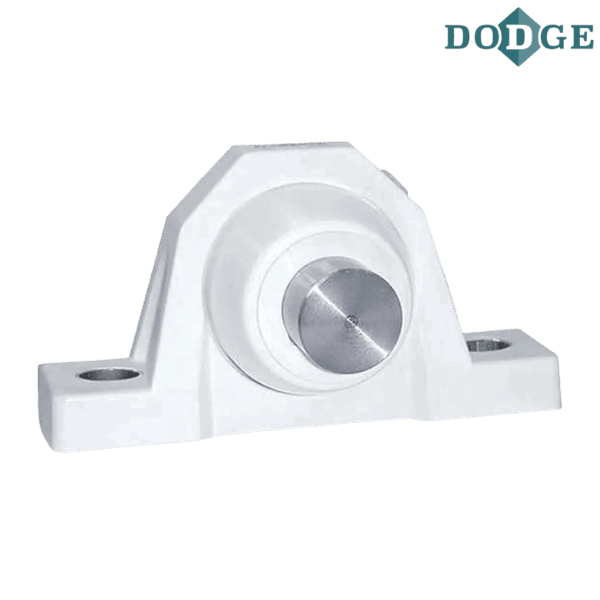

** Images are for representation purposes only
