Description
Brand - DODGE
Item Number - 034756 DODGE - TB-PSEZ-25M-P
Category - E-Z Kleen Mounted Bearings (PSEZ Polymer Sleeve Polymer Housed Tapped Base Pillow Blocks)
Series - 205
Shaft Size (mm) - 25mm
Description - TB-PSEZ-25M-P
Weight (kg) - 0.21

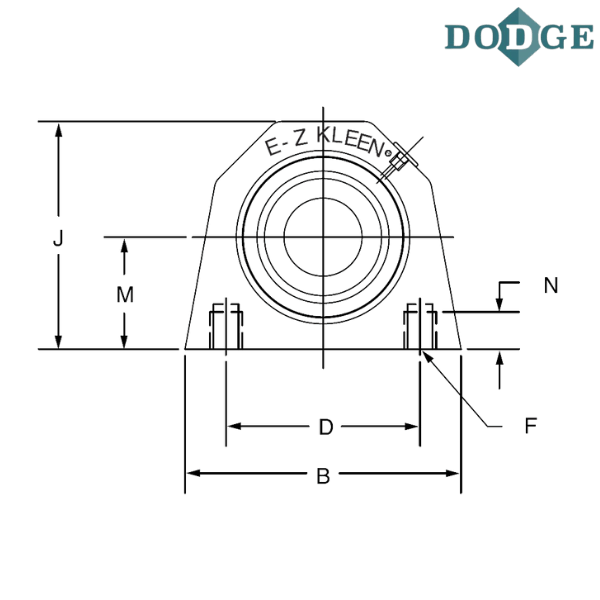

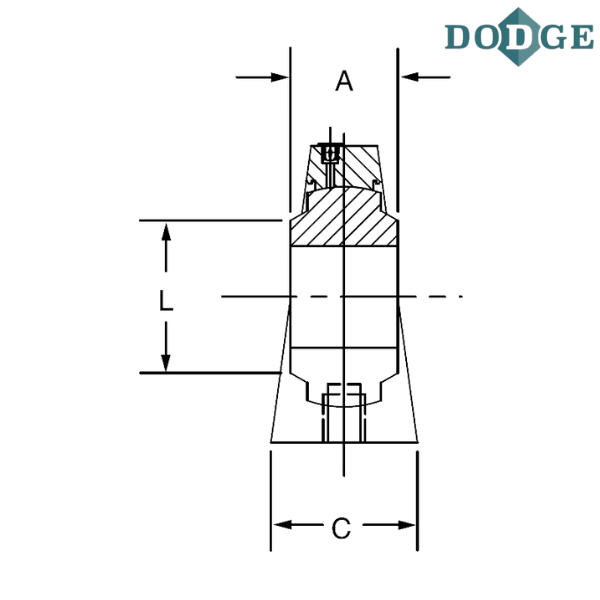

Length Through Bore (A) mm - 27
Overall Length (B) mm - 82.6
Overall Width (C) mm - 38.1
Bolt Center to Center Length (D) mm - 50.8
Overall Height (J) mm - 73.3
L (mm) - 36.5
Base to Center Height (M) mm - 36.5
N (mm) - 10.2
R (mm) - M10x1.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
PS - Polymer Sleeve Insert
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing

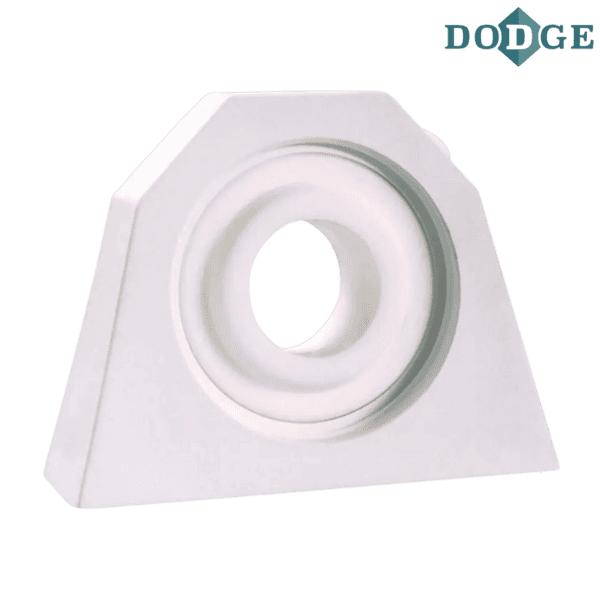

** Images are for representation purposes only
