Description
Brand - DODGE
Item Number - 035032 DODGE - F4B-BO-010
Category - Sleeve Bearings - BRONZOIL 4-Bolt Flange Bearing
Shaft Size (inch) - 0.625
Description - F4B-BO-010
Weight (lbs) - 0.6

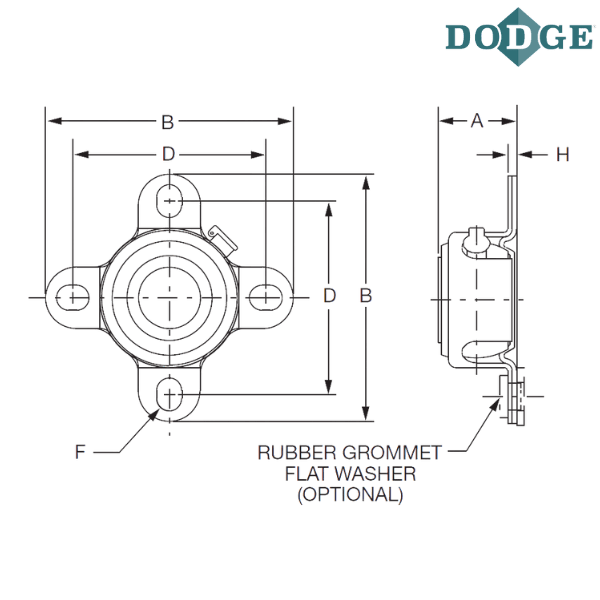

Length Through Bore (A) inch - 1.25
Overall Length (B) inch - 4
Bolt Center to Center Length (D) inch - 3.125
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.15625
Notes :
F4B - Flange, 4 Bolt
BO - BRONZOIL
010 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

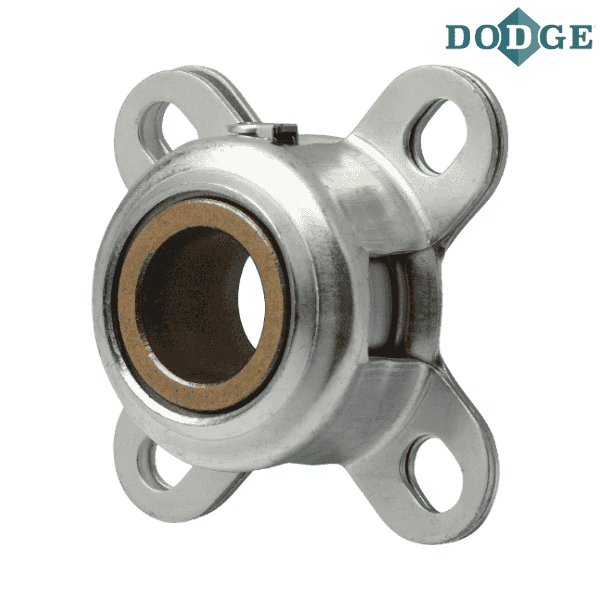

** Images are for representation purposes only
