Description
Brand - DODGE

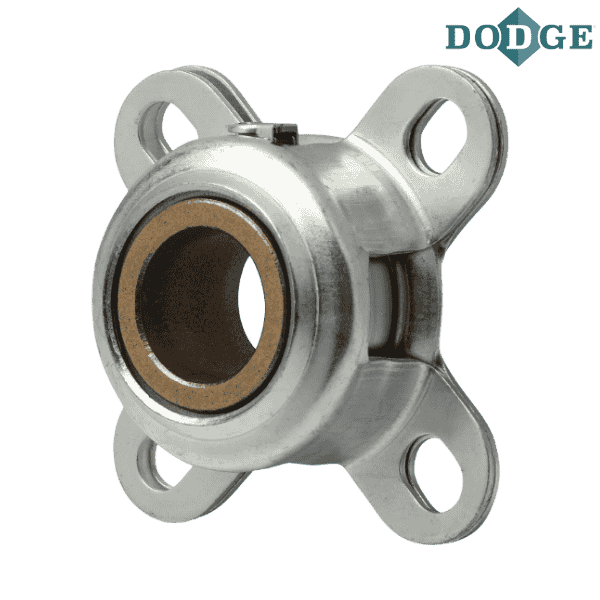

Item Number - 035036 DODGE - F4B-BO-100
Category - Sleeve Bearings - BRONZOIL 4-Bolt Flange Bearing
Shaft Size (inch) - 1
Description - F4B-BO-100
Weight (lbs) - 0.5

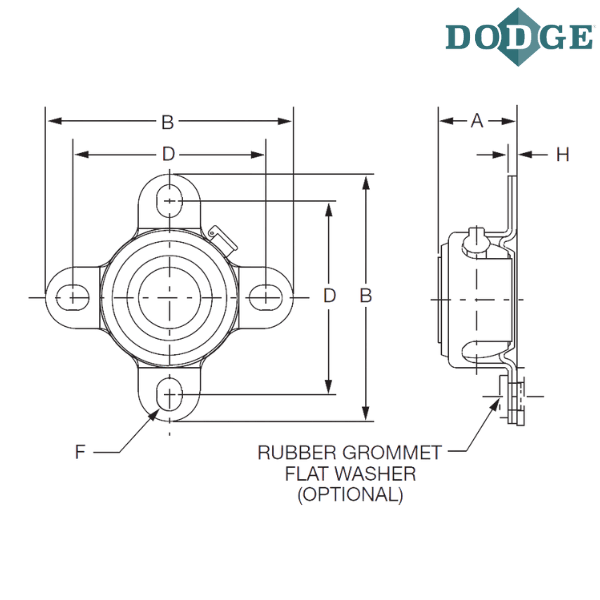

Length Through Bore (A) inch - 1.25
Overall Length (B) inch - 4
Bolt Center to Center Length (D) inch - 3.125
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.15625
Notes :
F4B - Flange, 4 Bolt
BO - BRONZOIL
100 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
