Description
Brand - DODGE
Item Number - 035773 DODGE - P2B520-USAF-307LERAH
Category - USAF 500 Air Handling Pillow Blocks with LER Seals

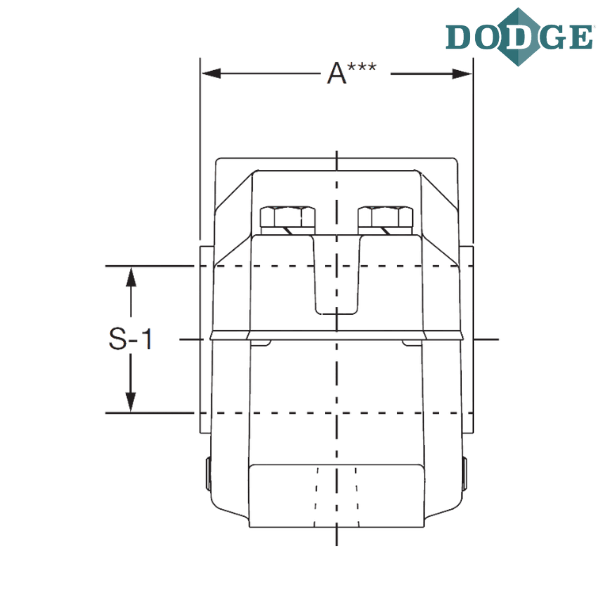

Shaft Diameter (S-1) inch - 3.4375
Description - P2B520-USAF-307LERAH
Housing W/ Stab Ring Item Number - 044020 DODGE - H2S-520-USAF
Bearing Item Number - 422988 DODGE - BRG22220KC3
Dynamic Capacity (C) lbf - 96500
Maximum RPM (Grease) - 2200
SNW Item Number - 046361 DODGE - H320-SNW-307
LER Seal Item Number ** - 042521 DODGE - 46LER307
End Cover Item Number - 040708 DODGE - EC46
Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
307 - 3-7/16”
LER - Metal Labyrinth
AH - Air Handling
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** LER seals are made from Aluminum

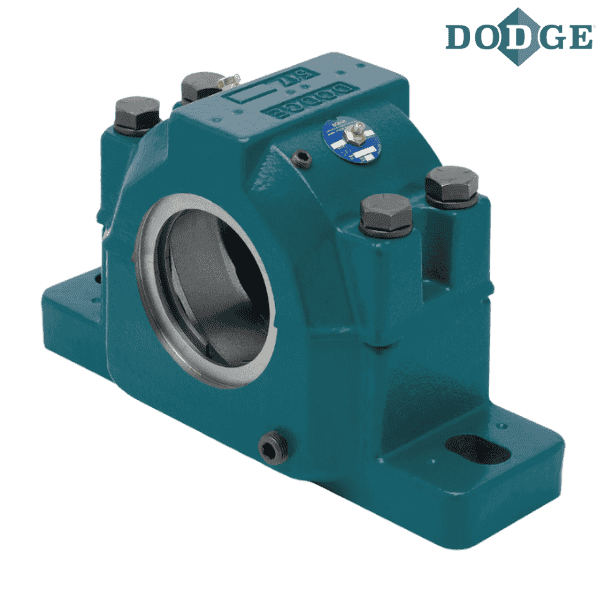

*** Images are for representation purposes only
