Description
Brand - DODGE

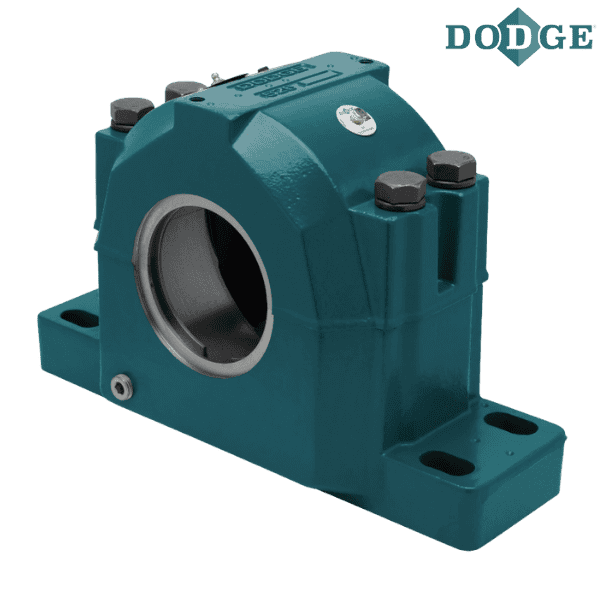

Item Number - 035776 DODGE - P4B515-USAF-207LERAH
Category - USAF 500 Air Handling Pillow Blocks with LER Seals

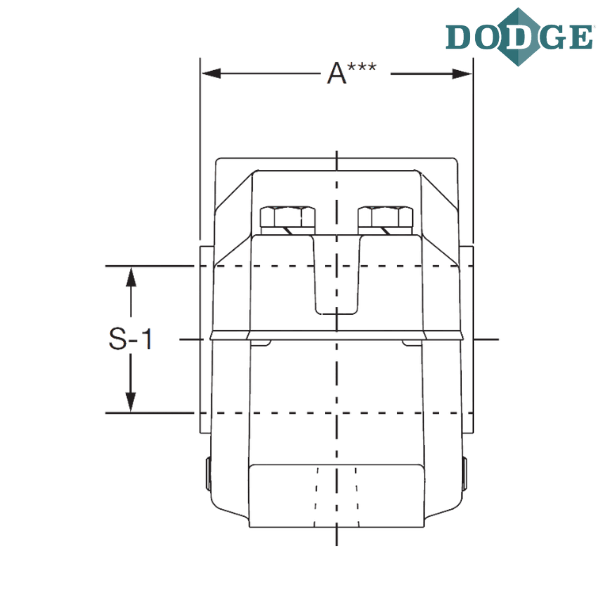

Shaft Diameter (S-1) inch - 2.4375
Description - P4B515-USAF-207LERAH
Housing W/ Stab Ring Item Number - 044003 DODGE - H4S-515-USAF
Bearing Item Number - 422984 DODGE - BRG22215KC3
Dynamic Capacity (C) lbf - 48000
Maximum RPM (Grease) - 3400
SNW Item Number - 046354 DODGE - H315-SNW-207
LER Seal Item Number ** - 042514 DODGE - 20LER207
End Cover Item Number - 040704 DODGE - EC20
Notes :
P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
207 - 2-7/16”
LER - Metal Labyrinth
AH - Air Handling
H4S - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** LER seals are made from Aluminum
*** Images are for representation purposes only
