Description
Brand - DODGE
Item Number - 035786 DODGE - P4B522-USAF-400LERAH
Category - USAF 500 Air Handling Pillow Blocks with LER Seals

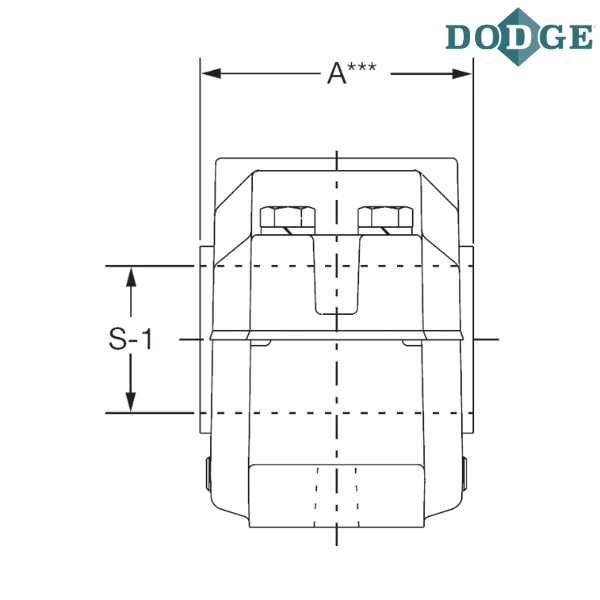

Shaft Diameter (S-1) inch - 4
Description - P4B522-USAF-400LERAH
Housing W/ Stab Ring Item Number - 044025 DODGE - H4S-522-USAF
Bearing Item Number - 422989 DODGE - BRG22222KC3
Dynamic Capacity (C) lbf - 122000
Maximum RPM (Grease) - 2000
SNW Item Number - 046364 DODGE - H322-SNW-400
LER Seal Item Number ** - 042524 DODGE - 50LER400
End Cover Item Number - 040709 DODGE - EC50
Notes :
P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
400 - 4”
LER - Metal Labyrinth
AH - Air Handling
H4S - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** LER seals are made from Aluminum

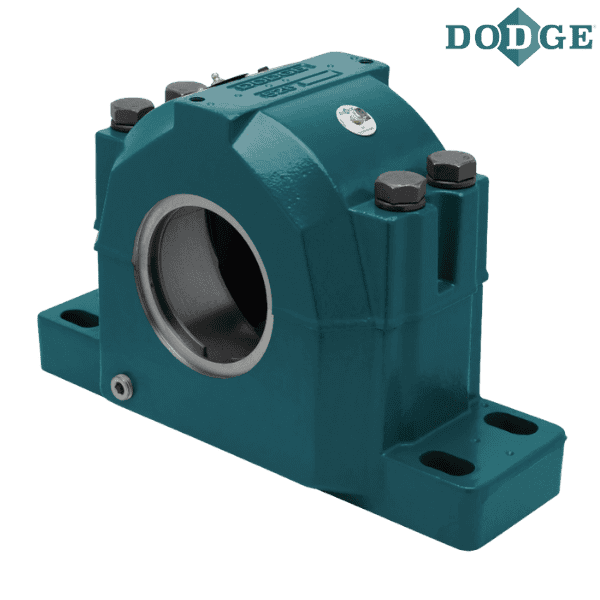

*** Images are for representation purposes only
