035915 DODGE - P2B310-USAF-206TT

Brand - DODGE
Item Number - 035915 DODGE - P2B310-USAF-206TT
Category - USAF 300 Direct Mount Pillow Block With TRIPLE-TECT Seal Assembly

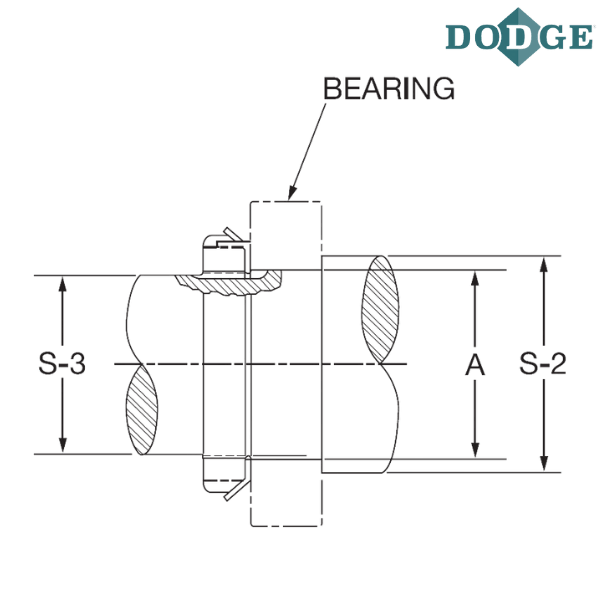

Shaft Diameter (S-2) inch - 2.375
Shaft Diameter (S-3) inch - 1.875
Bore Diameter (mm) - 50
Description - P2B310-USAF-206TT
Housing Item Number - 035437 DODGE - H2S-310-USAF
Bearing Item Number - 423143 DODGE - BRG22310C3
Dynamic Capacity (C) lbs - 51000
Maximum Rpm (Grease) - 3400
Shaft Locknut Item Number - 419188 DODGE - N10
Lockwasher Item Number - 419181 DODGE - W10
TRIPLE-TECT Seal Item Number (S-2) - 046166 DODGE - 18TT206
TRIPLE-TECT Seal Item Number (S-3) - 046167 DODGE - 12TT114
LER Seal Item Number (S-2)* - 046175 DODGE - 18LER206
LER Seal Item Number (S-3)* - 046176 DODGE - 12LER114
End Cover Item Number - 040702 DODGE - EC-12
Housing - 310

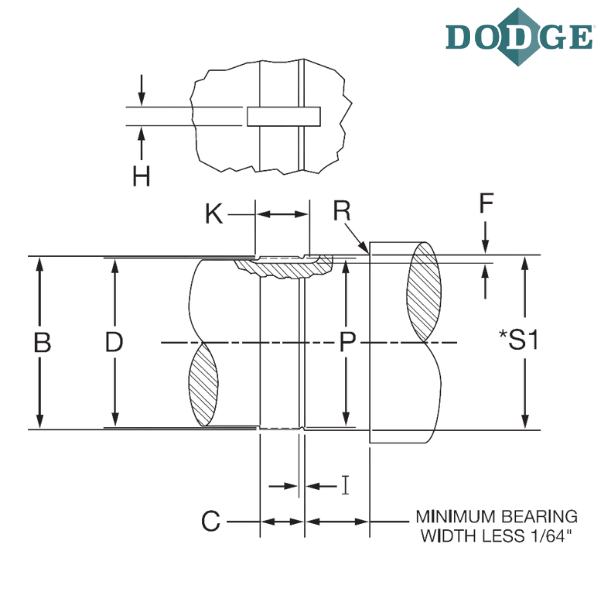

A1 (inch) - 4.7
Overall Length (B) inch - 10.63
C (inch) - 2.75
Bolt to Bolt Minimum Distance (D min) inch - 7.75
Bolt to Bolt Maximum Distance (D max) inch - 9
F-Bolt Diameter (inch) - 0.625
H (inch) - 1.41
Overall Height (J) inch - 5.72
K (inch) - 2.2
Base to Center Height (M) inch - 3
P (inch) - 6.13
Q (inch) *** - 1.38
S (inch) **** - 0.22
Static Oil Level (W) inch - 1.38
X (inch) - 1.53
Y (inch) - 0.95
Drain Hole Size - 1/8-27NPSI

Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
3XX - For Direct Mount 22300 Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
3XX - For Direct Mount 22300 Series Bearing
BRG - Roller Bearing
222 - 22200 Series
C3 - Bearing clearance

* LER seals are made from Aluminum
*** Distance shaft should extend beyond housing centerline if pillow block is closed end style
**** Non-expansion bearing offset from centerline. For expansion bearing S = 0

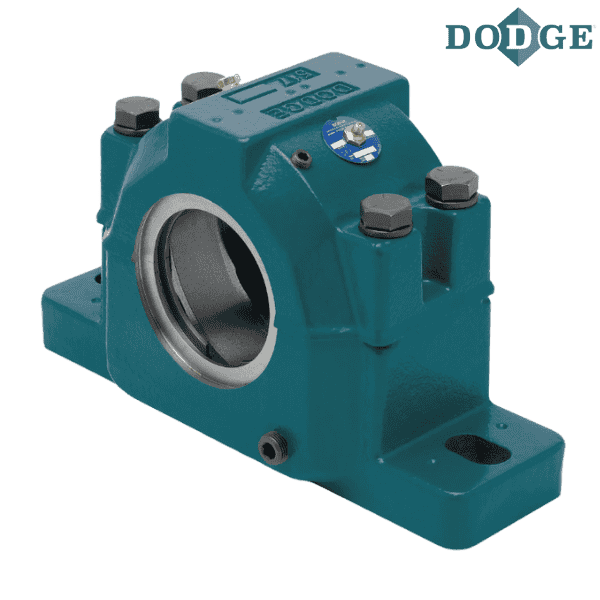

***** Images are for representation purposes only
