035917 DODGE - P4B316-USAF-310TT

Brand - DODGE
Item Number - 035917 DODGE - P4B316-USAF-310TT
Category - USAF 300 Direct Mount Pillow Block With TRIPLE-TECT Seal Assembly

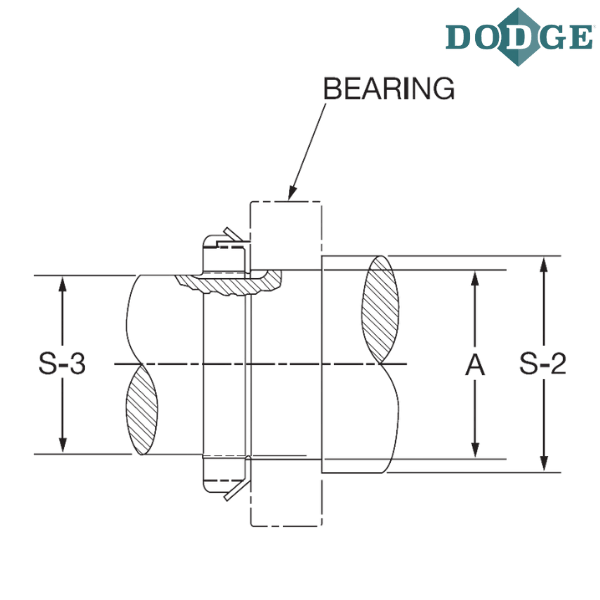

Shaft Diameter (S-2) inch - 3.625
Shaft Diameter (S-3) inch - 3
Bore Diameter (mm) - 80
Description - P4B316-USAF-310TT
Housing Item Number - 035439 DODGE - H4S-316-USAF
Bearing Item Number - 423144 DODGE - BRG22316C3
Dynamic Capacity (C) lbs - 112000
Maximum Rpm (Grease) - 2200
Shaft Locknut Item Number - 460902 DODGE - AN16
Lockwasher Item Number - 419152 DODGE - W16
TRIPLE-TECT Seal Item Number (S-2) - 046402 DODGE - 38TT310
TRIPLE-TECT Seal Item Number (S-3) - 042547 DODGE - 28TT300
TTDN Seal Item Number (S-2) - 039291 DODGE - 38TTDN310
TTDN Seal Item Number (S-3) - 039857 DODGE - 28TTDN300
LER Seal Item Number (S-2)* - 045931 DODGE - 38LER310
LER Seal Item Number (S-3)* - 042519 DODGE - 28LER300
End Cover Item Number - 040706 DODGE - EC28
Housing - 316

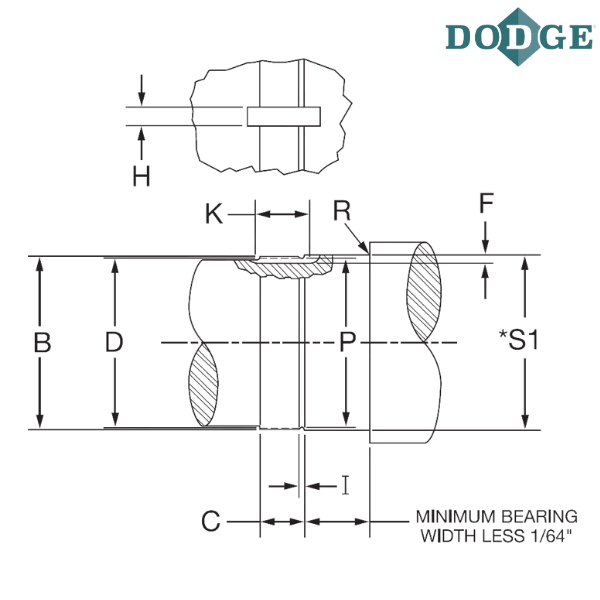

A1 (inch) - 6.38
Overall Length (B) inch - 14.17
C (inch) - 3.88
Bolt to Bolt Minimum Distance (D min) inch - 10.63
Bolt to Bolt Maximum Distance (D max) inch - 12.5
E (inch) - 2.13
F-Bolt Diameter (inch) - 0.625
H (inch) - 1.22
Overall Height (J) inch - 8.25
K (inch) - 2.95
Base to Center Height (M) inch - 4.25
P (inch) - 9.03
Q (inch) *** - 1.83
S (inch) **** - 0.19
Static Oil Level (W) inch - 1.69
X (inch) - 2.38
Y (inch) - 1.17
Drain Hole Size - 3/8-18NPSF

Notes :
P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
3XX - For Direct Mount 22300 Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
H4S - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
3XX - For Direct Mount 22300 Series Bearing
BRG - Roller Bearing
222 - 22200 Series
C3 - Bearing clearance

* LER seals are made from Aluminum
*** Distance shaft should extend beyond housing centerline if pillow block is closed end style
**** Non-expansion bearing offset from centerline. For expansion bearing S = 0

***** Images are for representation purposes only
