035929 DODGE - P2B610-USAF-111TT

Brand - DODGE
Item Number - 035929 DODGE - P2B610-USAF-111TT
Category - USAF 600 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly
Shaft Diameter (S-1) inch - 1.6875
Description - P2B610-USAF-111TT
Housing W/ Stab Ring Item Number - 035431 DODGE - H2S-610-USAF
Bearing Item Number - 423372 DODGE - BRG22310KC3
Dynamic Capacity (C) lbs - 42500
Maximum RPM (Grease) - 3400
SNW Item Number - 046680 DODGE - H2310-SNW-111
TRIPLE- TECT Item Number - 043579 DODGE - 10TT111
LER Seal Item Number** - 042199 DODGE - 10LER111
End Cover Item Number - 040701 DODGE - EC10
Housing - 610

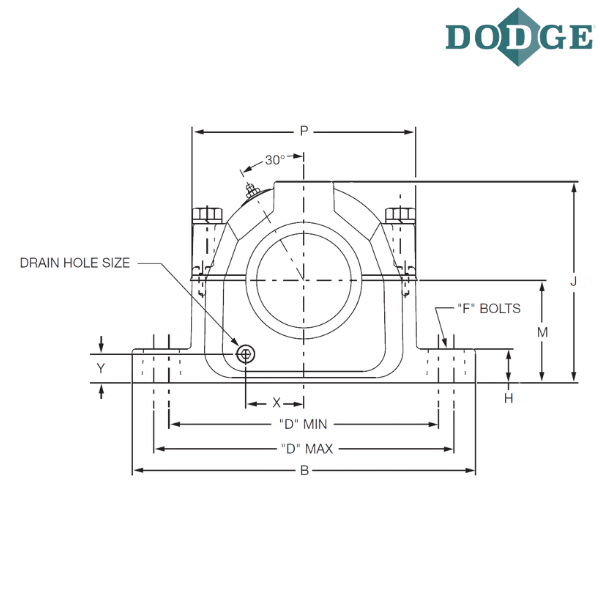

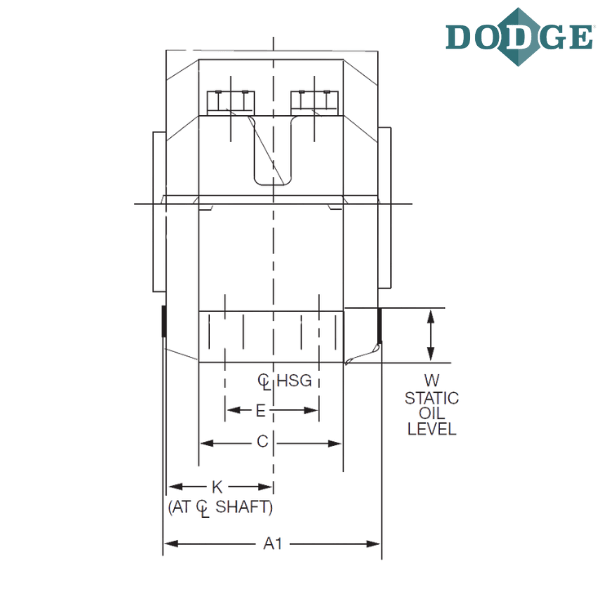

A1 (inch) - 4.7
Overall Length (B) inch - 10.63
C (inch) - 2.75
Bolt to Bolt Minimum Distance (D min) inch - 7.75
Bolt to Bolt Maximum Distance (D max) inch - 9
F-Bolt Diameter (inch) - 0.625
H (inch) - 1.41
Overall Height (J) inch - 5.72
K (inch) - 2.2
Base to Center Height (M) inch - 3
P (inch) - 6.13
Q (inch) *** - 1.38
S (inch) **** - 0.22
Static Oil Level (W) inch - 1.38
X (inch) - 1.53
Y (inch) - 0.98
Drain Hole Size - 1/8-27NPSI

Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
6XX - For Adapter Mounted 22300K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
111 - 1-11/16”
TT - TRIPLE-TECT
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
BRG - Roller Bearing
223 - 22300 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance

** LER seal is manufactured from Steel
*** Distance shaft should extend beyond housing centerline if pillow block is closed end style

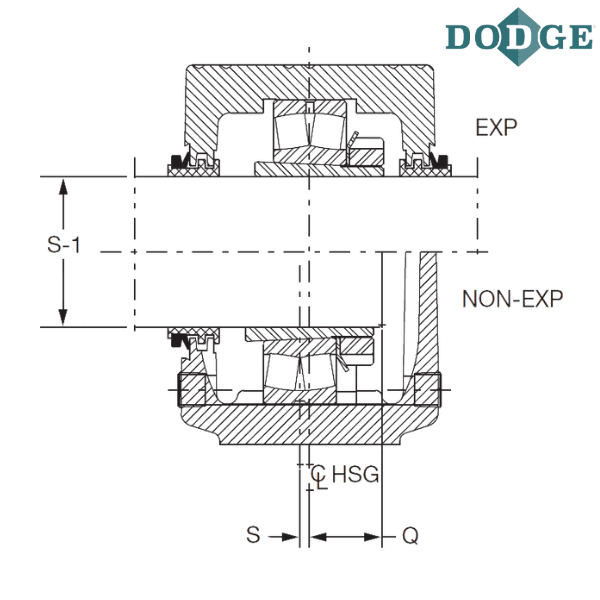

**** Non-expansion bearing offset from centerline. For expansion bearing S = 0

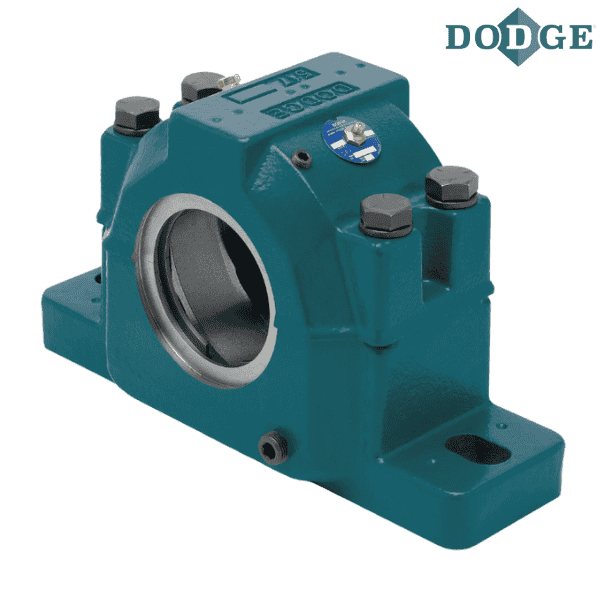

***** Images are for representation purposes only
