Description
Brand - DODGE
Item Number - 035944 DODGE - CH4S-USDAF-084
Category - USDAF Adapter Mount Pillow Block (Closed Housing)
Possible Shaft Diameters (inch) - 15.75
Housing - 84
Closed Housing Description - CH4S-USDAF-084
Open Housing Item Number - 035943 DODGE - H4S-USDAF-084
Bearing Item Number - 421284 DODGE - 23084K
Dynamic Capacity (C) lbs - 710000
Maximum RPM LER (Grease) - 450
SNP Item Number - 047636 DODGE - H3084-SNP-1512
TRIPLE- TECT Seal Item Number - 047957 DODGE - 112TT1512
# LER Seal Item Number - *046566 DODGE - 112ER1512
Auxiliary (Taconite) Item Number - 046572 DODGE - 112AUX1512
A1 (inch) - 18.38
Overall Length (B) inch - 46
C (inch) - 17.13
Bolt to Bolt Minimum Distance (D min) inch - 39.25
Bolt to Bolt Maximum Distance (D max) inch - 40.75
E (inch) - 11
F-Bolt Diameter (inch) - 2
H (inch) - 5.25
Overall Height (J) inch - 29
K (inch) - 8.75
Base to Center Height (M) inch - 14.5
P (inch) - 33.17
Q (inch) ** - 5.39
S (inch) *** - 0.19
Total Expansion (inch) - 0.375
Notes :
CH4S - 4 Bolt Base Pillow Block, Cast Iron, One End Closed
USDAF - UNIFIED SDAF Cast Iron Pillow Block Housing (Inch Dimensions)
# LER seals are made from Aluminum unless otherwise noted by the * symbol.
If an * appears by the part number, the LER seal is manufactured from Steel.

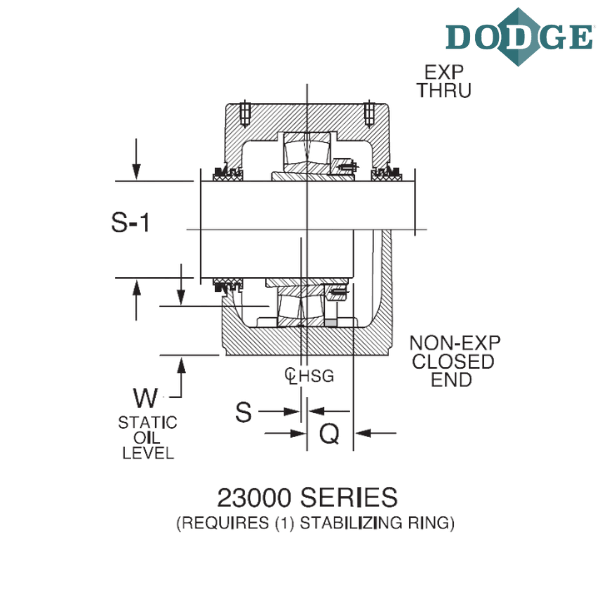

** Distance Shaft Should Extend Beyond Housing Centerline If Pillow Block Is Closed End Style
*** Non-expansion Bearing Offset From Centerline. For Expansion Bearing S = O
**** Images are for representation purposes only
