Description
Brand - DODGE
Item Number - 035946 DODGE - CH4S-USDAF-3168
Category - USDAF Adapter Mount Pillow Block (Closed Housing)
Possible Shaft Diameters (inch) - 12.4375, 12.5
Housing - 3168
Closed Housing Description - CH4S-USDAF-3168
Open Housing Item Number - 035945 DODGE - H4S-USDAF-3168
Bearing Item Number - 052081 DODGE - 23168K
Dynamic Capacity (C) lbs - 830000
Maximum RPM LER (Grease) - 500
SNP Item Numbers - 047641 DODGE - H3168-SNP-1207, 047642 DODGE - H31680-SNP-1208
TRIPLE- TECT Seal Item Numbers - 047948 DODGE - 102TT1207, 047949 DODGE - 102TT1208
# LER Seal Item Number - *046498 DODGE - 102ER1207, *046499 DODGE - 102ER1208
Auxiliary (Taconite) Item Number - 046567 DODGE - 102AUX1207, 046568 DODGE - 102AUX1208
A1 (inch) - 18.31
Overall Length (B) inch - 43.58
C (inch) - 17.75
Bolt to Bolt Minimum Distance (D min) inch - 36.75
Bolt to Bolt Maximum Distance (D max) inch - 38.25
E (inch) - 10.75
F-Bolt Diameter (inch) - 2
H (inch) - 5
Overall Height (J) inch - 28
K (inch) - 8.7
Base to Center Height (M) inch - 14
P (inch) - 31.13
Q (inch) ** - 6
S (inch) *** - 0
Total Expansion (inch) - 0.5
Notes :
CH4S - 4 Bolt Base Pillow Block, Cast Iron, One End Closed
USDAF - UNIFIED SDAF Cast Iron Pillow Block Housing (Inch Dimensions)
# LER seals are made from Aluminum unless otherwise noted by the * symbol.
If an * appears by the part number, the LER seal is manufactured from Steel.

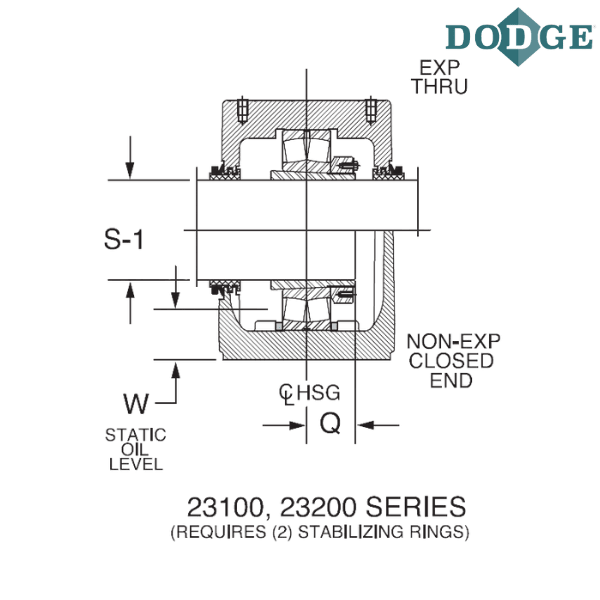

** Distance Shaft Should Extend Beyond Housing Centerline If Pillow Block Is Closed End Style
*** Non-expansion Bearing Offset From Centerline. For Expansion Bearing S = O
**** Images are for representation purposes only
