Description
Brand - DODGE

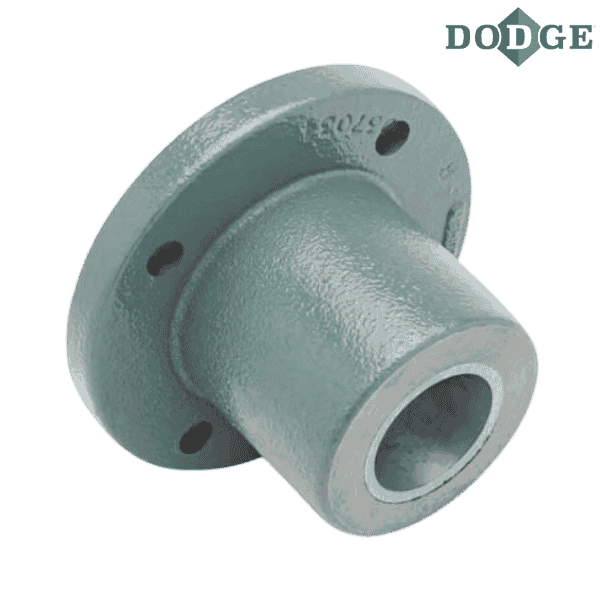

Item Number - 037002 DODGE - F4B-BAP-103
Category - Sleeve Bearings - Plate Type Babbitted Flange Bearing
Shaft Size (inch) - 1.1875
Description - F4B-BAP-103
Weight (lbs) - 3.6

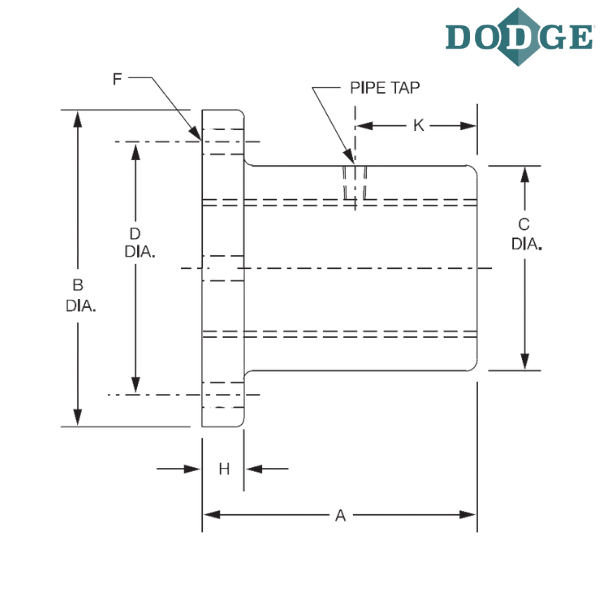

Length Through Bore (A) inch - 2.5
Overall Length (B) inch - 4.5
C (inch) - 2.5
Bolt Center to Center Length (D) inch - 3.5
F-Bolt Number - 4
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.4375
K (inch) - 1
Grease Cups (Pipe Tap) inch - 0.125
Grease Cups Size - 0
Notes :
F4B - Flange, 4 Bolt
BAP - Babbitted Plate
103 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
