Description
Brand - DODGE
Item Number - 037012 DODGE - F4B-BAP-108

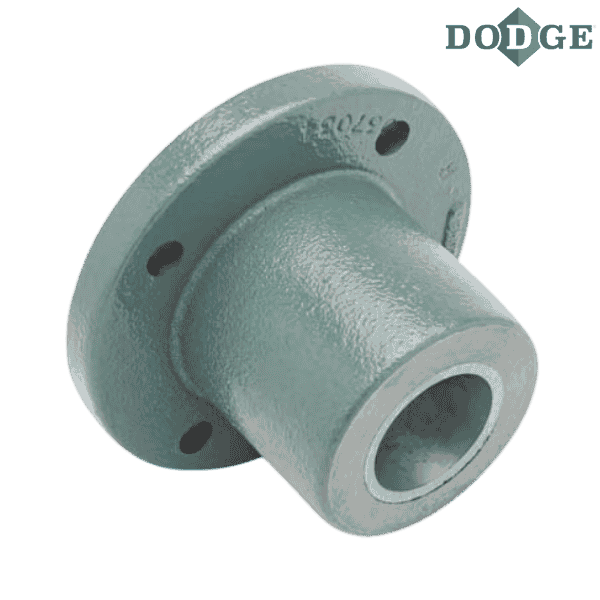

Category - Sleeve Bearings - Plate Type Babbitted Flange Bearing
Shaft Size (inch) - 1.5
Description - F4B-BAP-108
Weight (lbs) - 5.3

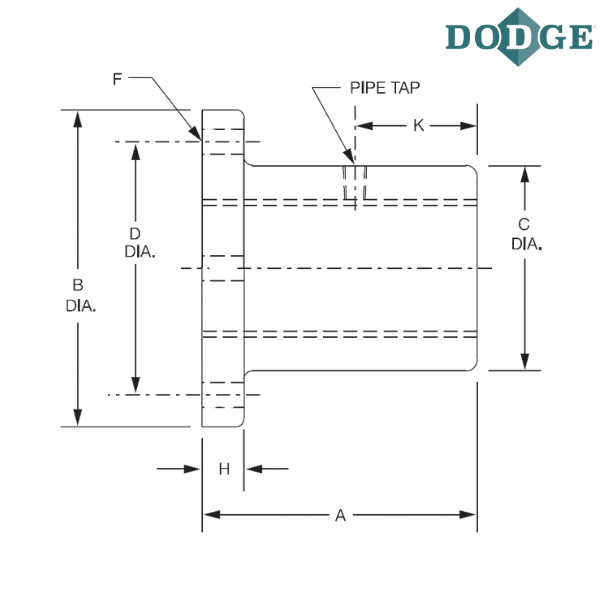

Length Through Bore (A) inch - 3
Overall Length (B) inch - 5.25
C (inch) - 2.75
Bolt Center to Center Length (D) inch - 4
F-Bolt Number - 4
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.5
K (inch) - 1.25
Grease Cups (Pipe Tap) inch - 0.25
Grease Cups Size - 0
Notes :
F4B - Flange, 4 Bolt
BAP - Babbitted Plate
108 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
