Description
Brand - DODGE
Item Number - 037013 DODGE - F4B-BAP-200
Category - Sleeve Bearings - Plate Type Babbitted Flange Bearing
Shaft Size (inch) - 2
Description - F4B-BAP-200
Weight (lbs) - 12

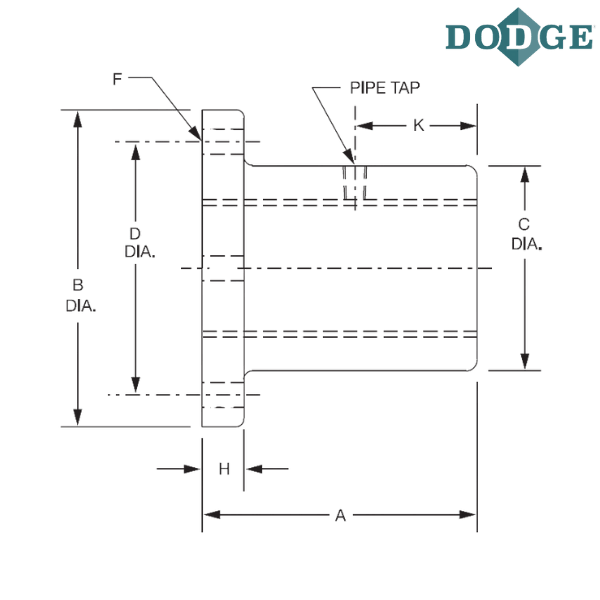

Length Through Bore (A) inch - 4
Overall Length (B) inch - 6.5
C (inch) - 3.75
Bolt Center to Center Length (D) inch - 5.25
F-Bolt Number - 4
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.6875
K (inch) - 1.625
Grease Cups (Pipe Tap) inch - 0.25
Grease Cups Size - 1
Notes :
F4B - Flange, 4 Bolt
BAP - Babbitted Plate
200 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

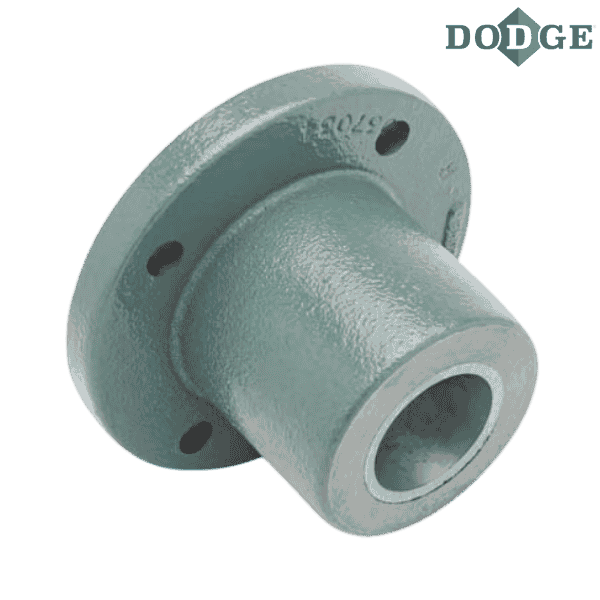

** Images are for representation purposes only
