Description
Brand - DODGE
Item Number - 037017 DODGE - F4B-BAP-211
Category - Sleeve Bearings - Plate Type Babbitted Flange Bearing
Shaft Size (inch) - 2.6875
Description - F4B-BAP-211
Weight (lbs) - 32

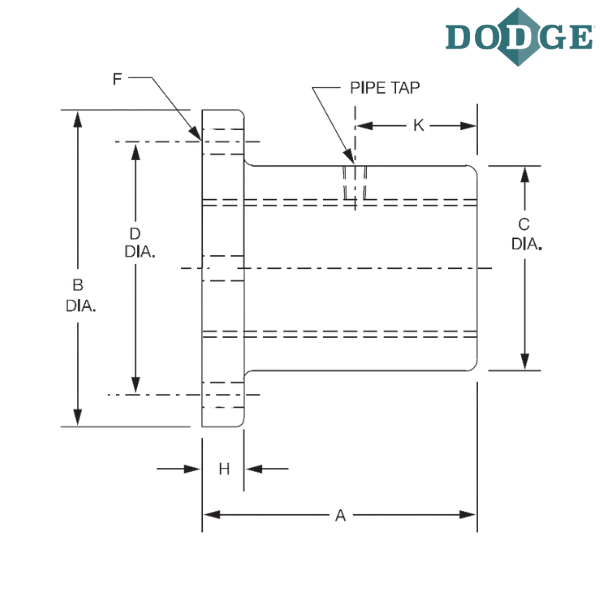

Length Through Bore (A) inch - 5.5
Overall Length (B) inch - 9
C (inch) - 5
Bolt Center to Center Length (D) inch - 7
F-Bolt Number - 4
F-Bolt Diameter (inch) - 0.75
H (inch) - 1
K (inch) - 1.75
Grease Cups (Pipe Tap) inch - 0.375
Grease Cups Size - 2
Notes :
F4B - Flange, 4 Bolt
BAP - Babbitted Plate
211 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

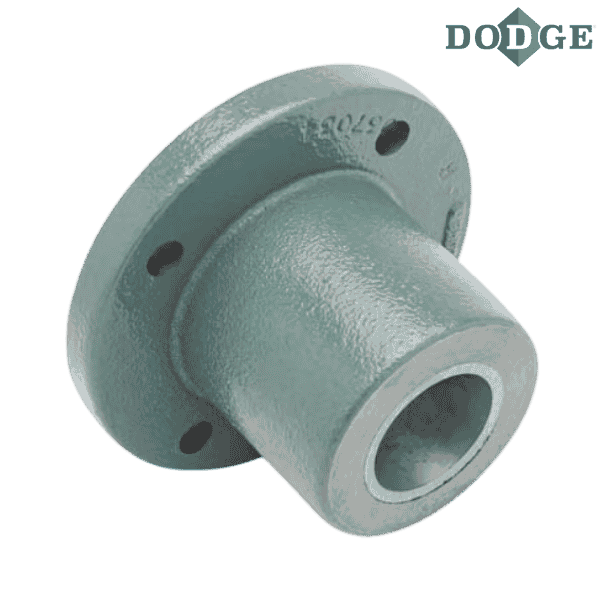

** Images are for representation purposes only
