Description
Brand - DODGE
Item Number - 037427 DODGE - CH4S-USDAF-064
Category - USDAF Adapter Mount Pillow Block (Closed Housing)
Possible Shaft Diameters (inch) - 11.4375, 11.5
Housing - 064
Closed Housing Description - CH4S-USDAF-064
Open Housing Item Number - 422502 DODGE - H4S-USDAF-064
Bearing Item Number - 422531 DODGE - 23064K
Dynamic Capacity (C) lbs - 455000
Maximum RPM LER (Grease) - 600
SNP Item Numbers - 043582 DODGE - H3064-SNP-1107, 043583 DODGE - H3064-SNP-1108
TRIPLE- TECT Seal Item Numbers - 047944 DODGE - 98TT1107, 047945 DODGE - 98TT1108
# LER Seal Item Number - *042038 DODGE - 98LER1107, *042039 DODGE - 98ER1108
Auxiliary (Taconite) Item Number - 045784 DODGE - 98AUX1107, 045787 DODGE - 98AUX1107
A1 (inch) - 16.36
Overall Length (B) inch - 38.25
C (inch) - 14.75
Bolt to Bolt Minimum Distance (D min) inch - 31.63
Bolt to Bolt Maximum Distance (D max) inch - 34.63
E (inch) - 9
F-Bolt Diameter (inch) - 1.625
H (inch) - 3.38
Overall Height (J) inch - 23.44
K (inch) - 7.72
Base to Center Height (M) inch - 12
P (inch) - 26.5
Q (inch) ** - 4.45
S (inch) *** - 0.19
Total Expansion (inch) - 0.375
Notes :
CH4S - 4 Bolt Base Pillow Block, Cast Iron, One End Closed
USDAF - UNIFIED SDAF Cast Iron Pillow Block Housing (Inch Dimensions)
# LER seals are made from Aluminum unless otherwise noted by the * symbol.
If an * appears by the part number, the LER seal is manufactured from Steel.

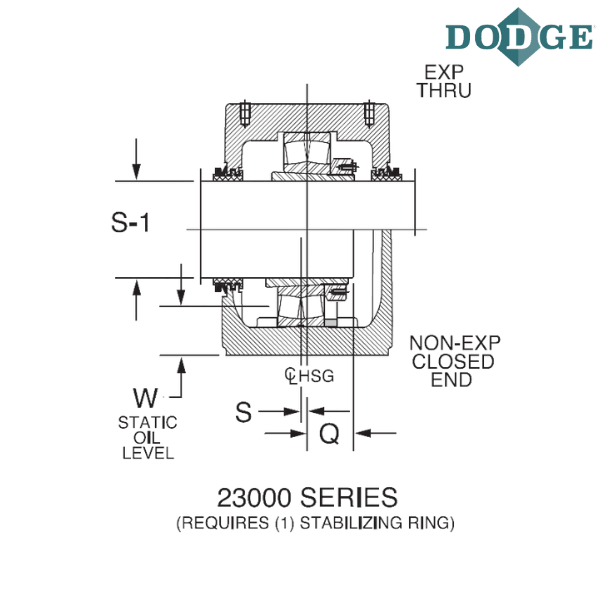

** Distance Shaft Should Extend Beyond Housing Centerline If Pillow Block Is Closed End Style
*** Non-expansion Bearing Offset From Centerline. For Expansion Bearing S = O
**** Images are for representation purposes only
