Description
Brand - DODGE
Item Number - 037430 DODGE - CH4S-USDAF-072L
Category - USDAF Adapter Mount Pillow Block (Closed Housing)
Possible Shaft Diameters (inch) - 13.4375, 13.5
Housing - 072L
Closed Housing Description - CH4S-USDAF-072L
Open Housing Item Number - 044165 DODGE - H4S-USDAF-072L
Bearing Item Number - 422036 DODGE - 23072K
Dynamic Capacity (C) lbs - 550000
Maximum RPM LER (Grease) - 530
SNP Item Numbers - 043637 DODGE - H3072L-SNP-1307, 043638 DODGE - H3072L-SNP-1308
TRIPLE- TECT Seal Item Numbers - 047952 DODGE - 106TT1307, 047953 DODGE - 106TT1308
# LER Seal Item Number - *042092 DODGE - 106ER1307, *042093 DODGE - 106ER1308
Auxiliary (Taconite) Item Number - 045802 DODGE - 106AUX1307, 045805 DODGE - 106AUX1308
A1 (inch) - 16.98
Overall Length (B) inch - 41.75
C (inch) - 15.75
Bolt to Bolt Minimum Distance (D min) inch - 35
Bolt to Bolt Maximum Distance (D max) inch - 36.5
E (inch) - 10.25
F-Bolt Diameter (inch) - 1.875
H (inch) - 4.5
Overall Height (J) inch - 25.75
K (inch) - 8.16
Base to Center Height (M) inch - 12.81
P (inch) - 29.13
Q (inch) ** - 4.81
S (inch) *** - 0.19
Total Expansion (inch) - 0.375
Notes :
CH4S - 4 Bolt Base Pillow Block, Cast Iron, One End Closed
USDAF - UNIFIED SDAF Cast Iron Pillow Block Housing (Inch Dimensions)
# LER seals are made from Aluminum unless otherwise noted by the * symbol.
If an * appears by the part number, the LER seal is manufactured from Steel.

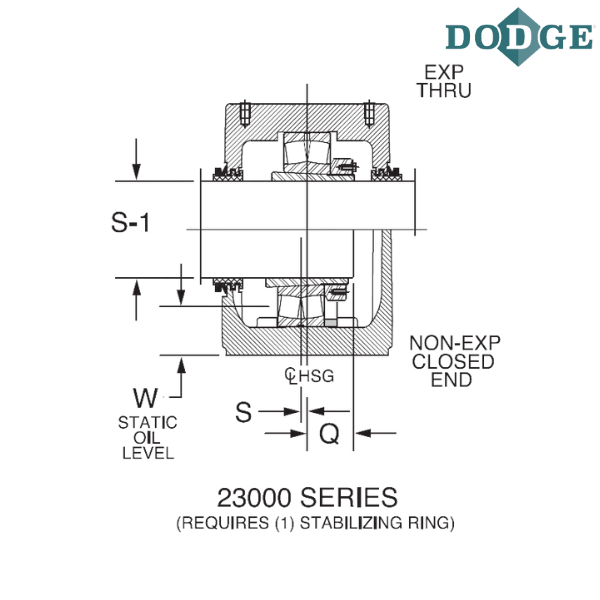

** Distance Shaft Should Extend Beyond Housing Centerline If Pillow Block Is Closed End Style
*** Non-expansion Bearing Offset From Centerline. For Expansion Bearing S = O
**** Images are for representation purposes only
