Description
Brand - DODGE
Item Number - 037437 DODGE - CH4S-USDAF-3164
Category - USDAF Adapter Mount Pillow Block (Closed Housing)
Possible Shaft Diameters (inch) - 11.9375, 12.0
Housing - 3164
Closed Housing Description - CH4S-USDAF-3164
Open Housing Item Number - 037436 DODGE - H4S-USDAF-3164
Bearing Item Number - 421287 DODGE - 23164K
Dynamic Capacity (C) lbs - 720000
Maximum RPM LER (Grease) - 530
SNP Item Numbers - 047639 DODGE - H3164-SNP-115, 050531 DODGE - H3164-SNP-1200
TRIPLE- TECT Seal Item Numbers - 047946 DODGE - 100TT1115, 047947 DODGE - 100TT1200
# LER Seal Item Number - *042040 DODGE - 100ER1115, *422535 DODGE - 100ER1200
Auxiliary (Taconite) Item Number - 045790 DODGE - 100AUX1115, 045793 DODGE - 100AUX1200
A1 (inch) - 16.98
Overall Length (B) inch - 41.75
C (inch) - 15.75
Bolt to Bolt Minimum Distance (D min) inch - 35
Bolt to Bolt Maximum Distance (D max) inch - 36.5
E (inch) - 10.25
F-Bolt Diameter (inch) - 1.875
H (inch) - 4.5
Overall Height (J) inch - 25.75
K (inch) - 8.16
Base to Center Height (M) inch - 12.81
P (inch) - 29.13
Q (inch) ** - 5.72
S (inch) *** - 0
Total Expansion (inch) - 0.75
Notes :
CH4S - 4 Bolt Base Pillow Block, Cast Iron, One End Closed
USDAF - UNIFIED SDAF Cast Iron Pillow Block Housing (Inch Dimensions)
# LER seals are made from Aluminum unless otherwise noted by the * symbol.
If an * appears by the part number, the LER seal is manufactured from Steel.

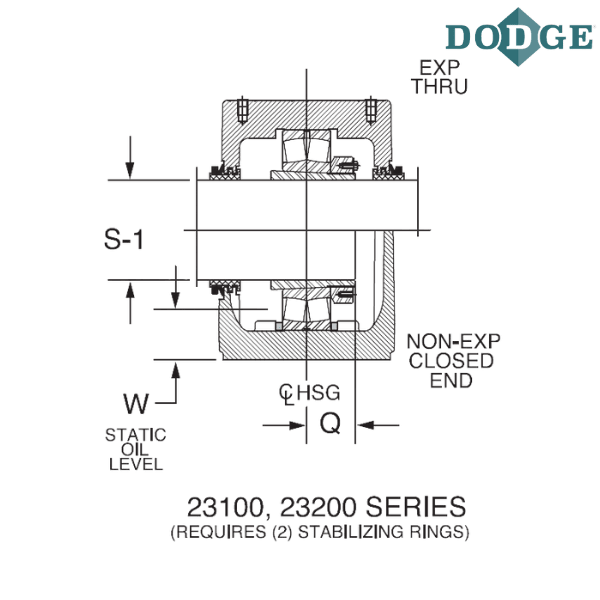

** Distance Shaft Should Extend Beyond Housing Centerline If Pillow Block Is Closed End Style
*** Non-expansion Bearing Offset From Centerline. For Expansion Bearing S = O
**** Images are for representation purposes only
