Description
Brand - DODGE
Item Number - 037441 DODGE - CH4S-USDAF-3176
Category - USDAF Adapter Mount Pillow Block (Closed Housing)
Possible Shaft Diameters (inch) - 13.9375, 14.0
Housing - 3176
Closed Housing Description - CH4S-USDAF-3176
Open Housing Item Number - 037440 DODGE - H4S-USDAF-3176
Bearing Item Number - 421289 DODGE - 23176K
Dynamic Capacity (C) lbs - 915000
Maximum RPM LER (Grease) - 450
SNP Item Numbers - 047644 DODGE - H3176-SNP-1315, 047645 DODGE - H3176-SNP-1400
TRIPLE- TECT Seal Item Numbers - 047954 DODGE - 108TT1315, 047955 DODGE - 108TT1400
# LER Seal Item Number - *042094 DODGE - 108ER1315, *042095 DODGE - 108ER1400
Auxiliary (Taconite) Item Number - 045808 DODGE - 108AUX1315, 046569 DODGE - 108AUX1400
A1 (inch) - 18.38
Overall Length (B) inch - 46
C (inch) - 17.13
Bolt to Bolt Minimum Distance (D min) inch - 39.25
Bolt to Bolt Maximum Distance (D max) inch - 40.75
E (inch) - 11
F-Bolt Diameter (inch) - 2
H (inch) - 5.25
Overall Height (J) inch - 29
K (inch) - 8.75
Base to Center Height (M) inch - 14.5
P (inch) - 33.17

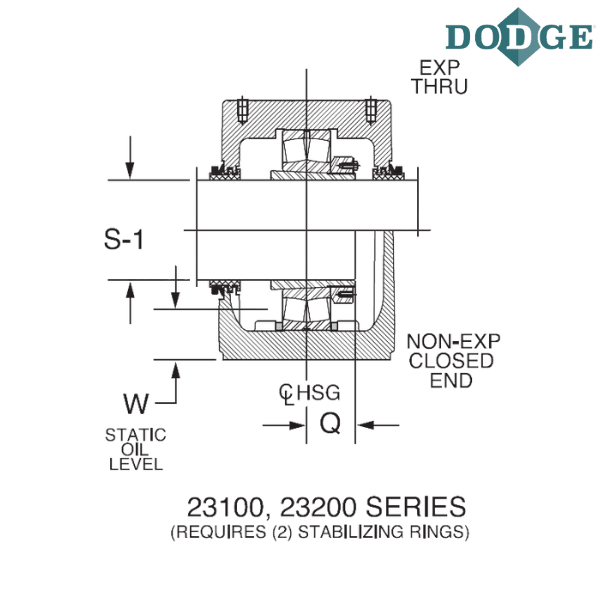

Q (inch) ** - 6.31
S (inch) *** - 0
Total Expansion (inch) - 0.75
Notes :
CH4S - 4 Bolt Base Pillow Block, Cast Iron, One End Closed
USDAF - UNIFIED SDAF Cast Iron Pillow Block Housing (Inch Dimensions)
# LER seals are made from Aluminum unless otherwise noted by the * symbol.
If an * appears by the part number, the LER seal is manufactured from Steel.
** Distance Shaft Should Extend Beyond Housing Centerline If Pillow Block Is Closed End Style
*** Non-expansion Bearing Offset From Centerline. For Expansion Bearing S = O
**** Images are for representation purposes only
