Description
Brand - DODGE
Item Number - 037450 DODGE - CH4S-USDAF-3264
Category - USDAF Adapter Mount Pillow Block (Closed Housing)
Possible Shaft Diameters (inch) - 11.9375, 12.0
Housing - 3264
Closed Housing Description - CH4S-USDAF-3264
Open Housing Item Number - 037449 DODGE - H4S-USDAF-3264
Bearing Item Number - 422844 DODGE - 23264K
Dynamic Capacity (C) lbs - 865000
Maximum RPM LER (Grease) - 530
SNP Item Numbers - 047680 DODGE - H3264-SNP-1115, 422843 DODGE - H3264-SNP-1200
TRIPLE- TECT Seal Item Numbers - 047946 DODGE - 100TT115, 047947 DODGE - 100TT1200
# LER Seal Item Number - *042040 DODGE - 100ER1115, *422535 DODGE - 100ER1200
Auxiliary (Taconite) Item Number - 045790 DODGE - 100AUX1115, 045793 DODGE - 100AUX1200
A1 (inch) - 18.31
Overall Length (B) inch - 43.58
C (inch) - 17.75
Bolt to Bolt Minimum Distance (D min) inch - 36.75
Bolt to Bolt Maximum Distance (D max) inch - 38.25
E (inch) - 10.75
F-Bolt Diameter (inch) - 2
H (inch) - 5
Overall Height (J) inch - 28
K (inch) - 8.7
Base to Center Height (M) inch - 14
P (inch) - 31.13

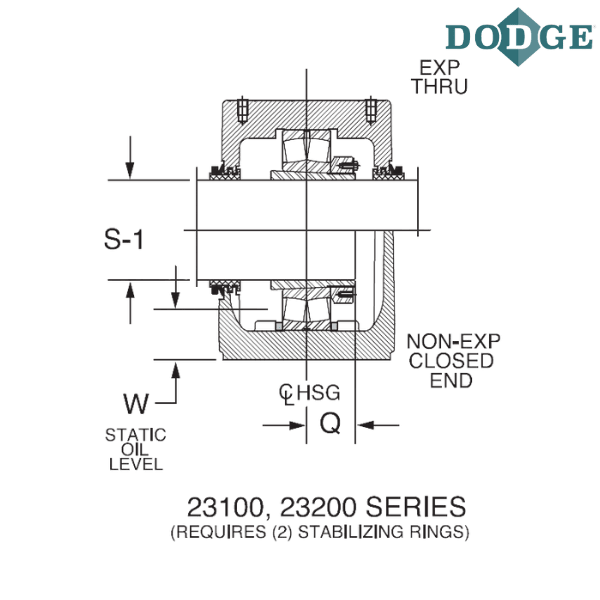

Q (inch) ** - 6.22
S (inch) *** - 0
Total Expansion (inch) - 0.5
Notes :
CH4S - 4 Bolt Base Pillow Block, Cast Iron, One End Closed
USDAF - UNIFIED SDAF Cast Iron Pillow Block Housing (Inch Dimensions)
# LER seals are made from Aluminum unless otherwise noted by the * symbol.
If an * appears by the part number, the LER seal is manufactured from Steel.
** Distance Shaft Should Extend Beyond Housing Centerline If Pillow Block Is Closed End Style
*** Non-expansion Bearing Offset From Centerline. For Expansion Bearing S = O
**** Images are for representation purposes only
