037581 DODGE - P2B-510-TAF-111-R

Brand - DODGE
Item Number - 037581 DODGE - P2B-510-TAF-111-R
Category - 2-Bolt Base TAF Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 1.6875
Shaft Size Symbol - 111
SAF Housing Number - 510
Description - P2B-510-TAF-111-R
Housing Only - 037541
Bearing Inner Unit - 037633
Approximate Weight of Pillow Block (lbs) - 15

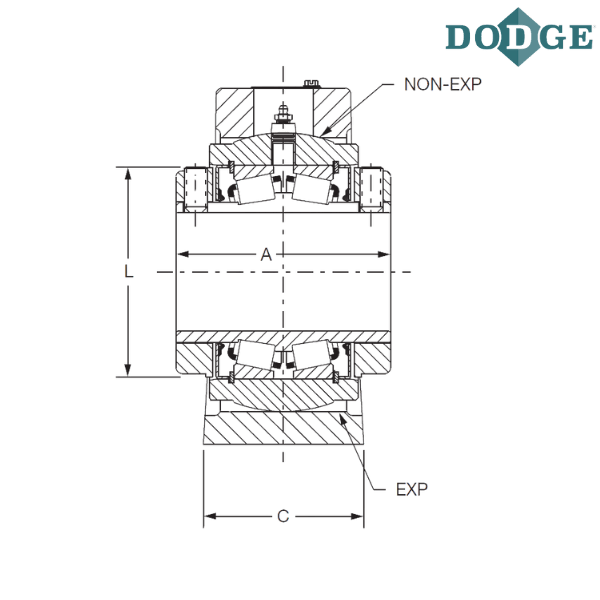

Length Through Bore (A) inch - 3.38

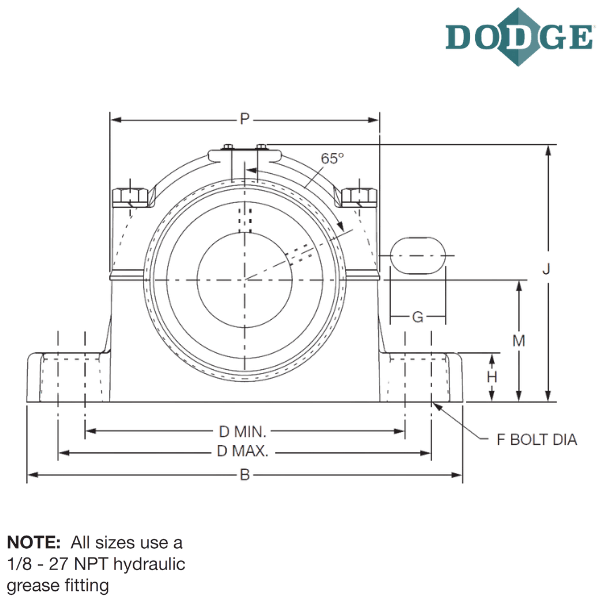

Overall Length (B) inch - 8.25
C (inch) - 2.38
Bolt to Bolt Minimum Distance (D min) inch - 6.5
Bolt to Bolt Maximum Distance (D max) inch - 7
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.88
H (inch) - 1.03
Overall Height (J) inch - 5.63
L (inch) - 3.19
Base to Center Height (M) inch - 2.5
P (inch) - 5.81
EXP* (inch) - 0.09375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
5XX - Housing Series (TAF Only)
R - “XTS” Triple Lip Seal

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

** Images are for representation purposes only
