037604 DODGE - P4B-515-TAF-207-R

Brand - DODGE
Item Number - 037604 DODGE - P4B-515-TAF-207-R
Category - 4-Bolt Base TAF Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 2.4375
Shaft Size Symbol - 207
SAF Housing Number - 515
Description - P4B-515-TAF-207-R
Housing Only - 037548
Bearing Inner Unit - 037636
Approximate Weight of Pillow Block (lbs) - 30

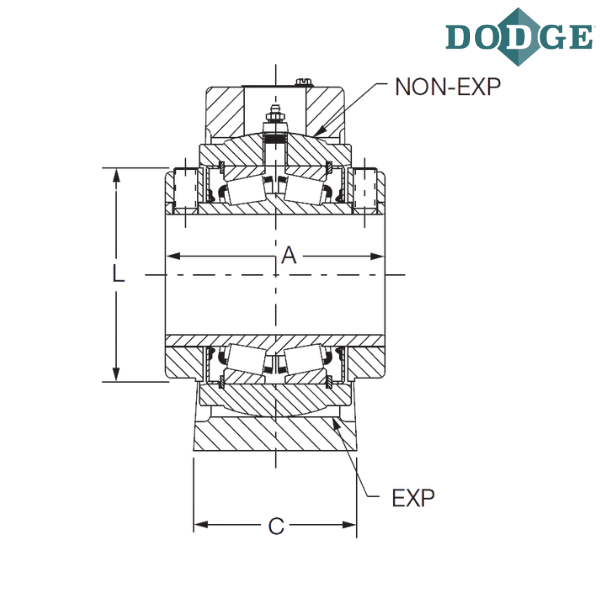

Length Through Bore (A) inch - 4

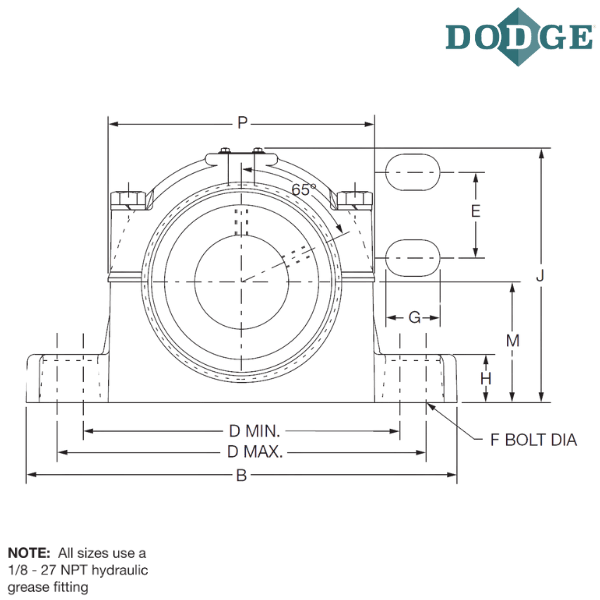

Overall Length (B) inch - 11.13
C (inch) - 3.13
Bolt to Bolt Minimum Distance (D min) inch - 8.63
Bolt to Bolt Maximum Distance (D max) inch - 9.63
E (inch) - 1.88
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.13
H (inch) - 1.25
Overall Height (J) inch - 7.03
L (inch) - 4.06
Base to Center Height (M) inch - 3.25
P (inch) - 7.38
EXP* (inch) - 0.28125
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
5XX - Housing Series (TAF Only)
R - “XTS” Triple Lip Seal

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

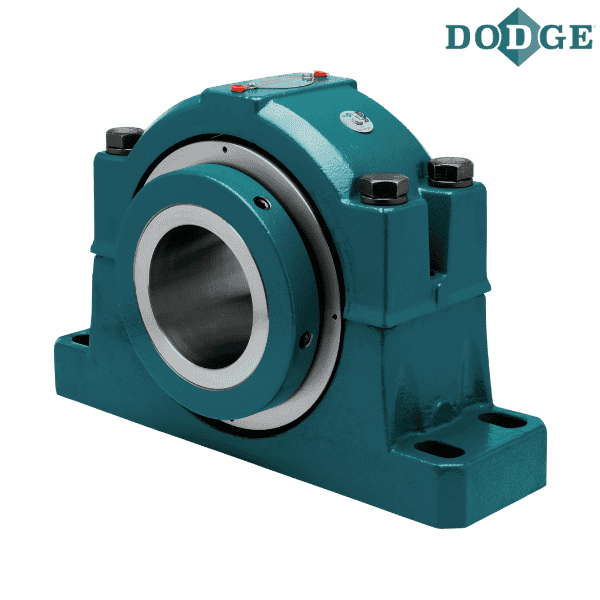

** Images are for representation purposes only
