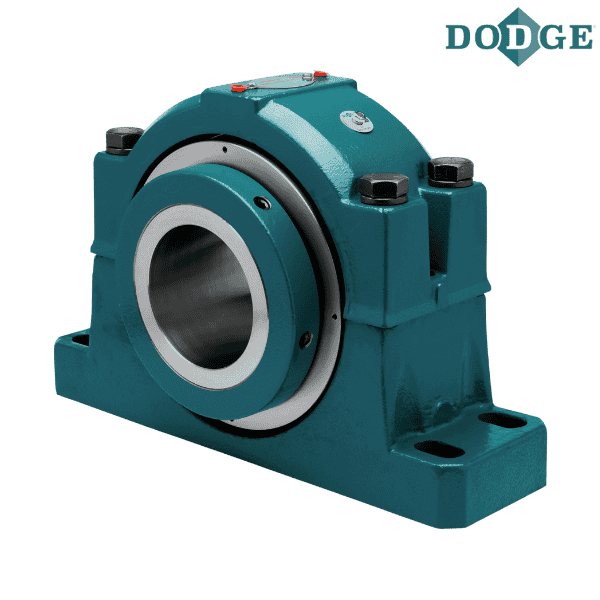

037613 DODGE - P4B-522-TAF-400-R

Brand - DODGE
Item Number - 037613 DODGE - P4B-522-TAF-400-R
Category - 4-Bolt Base TAF Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 4
Shaft Size Symbol - 400
SAF Housing Number - 522
Description - P4B-522-TAF-400-R
Housing Only - 037552
Bearing Inner Unit - 037645
Approximate Weight of Pillow Block (lbs) - 110

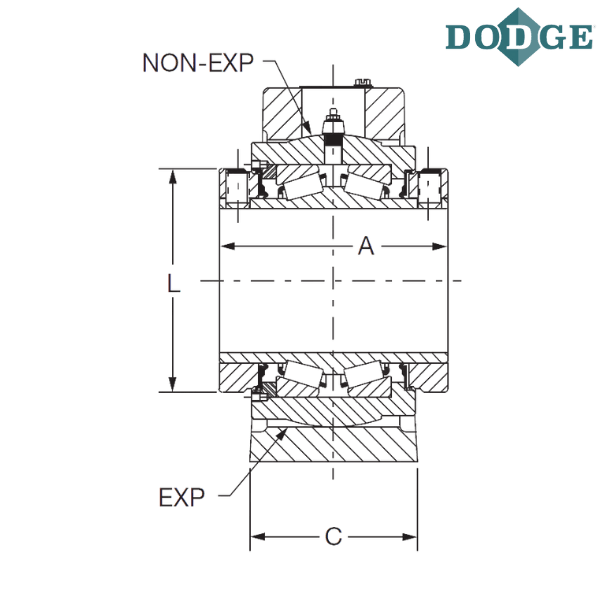

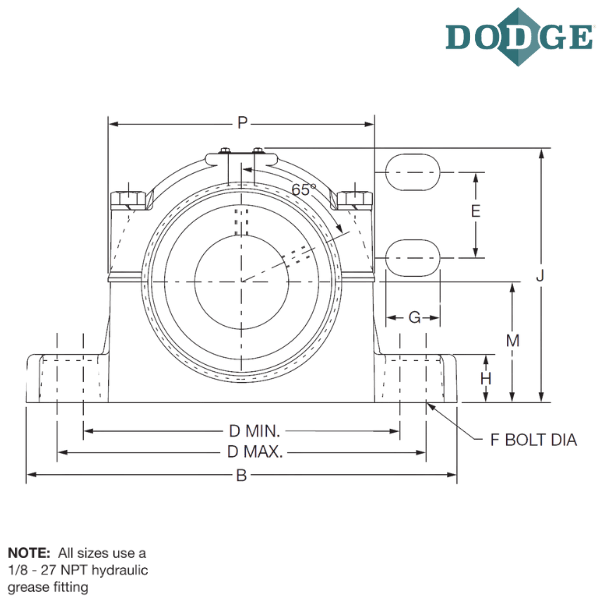

Length Through Bore (A) inch - 6.25
Overall Length (B) inch - 16.5
C (inch) - 4.75
Bolt to Bolt Minimum Distance (D min) inch - 12.59
Bolt to Bolt Maximum Distance (D max) inch - 14.5
E (inch) - 2.75
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.83
H (inch) - 1.78
Overall Height (J) inch - 10.36
L (inch) - 6
Base to Center Height (M) inch - 4.94
P (inch) - 10.7
EXP* (inch) - 0.34375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
5XX - Housing Series (TAF Only)
R - “XTS” Triple Lip Seal

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

** Images are for representation purposes only
