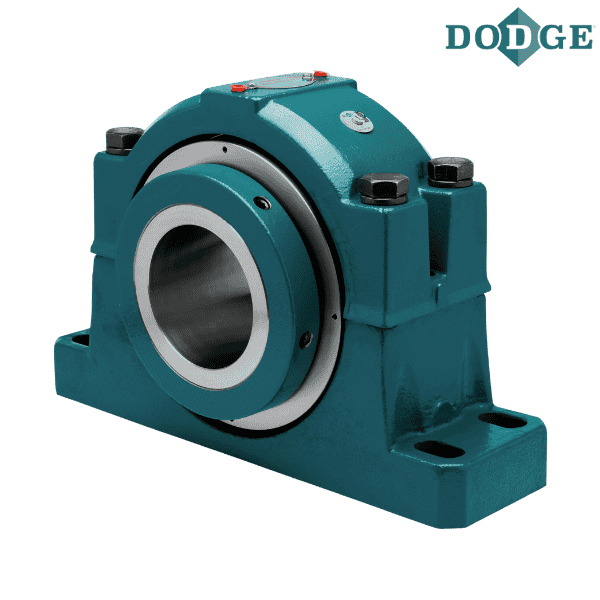

037620 DODGE - P4B-516-TAF-211-RE

Brand - DODGE
Item Number - 037620 DODGE - P4B-516-TAF-211-RE
Category - 2-Bolt Base TAF Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 2.6875
Shaft Size Symbol - 211
SAF Housing Number - 516
Description - P4B-516-TAF-211-R
Housing Only - 037564
Bearing Inner Unit - 037638
Approximate Weight of Pillow Block (lbs) - 38

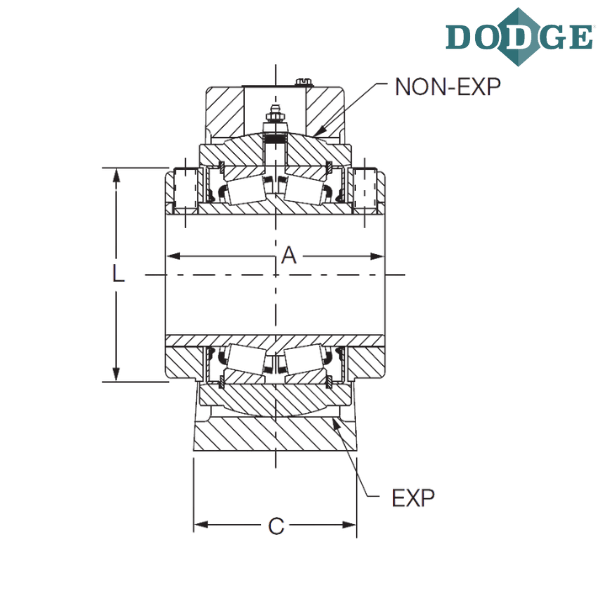

Length Through Bore (A) inch - 4.5

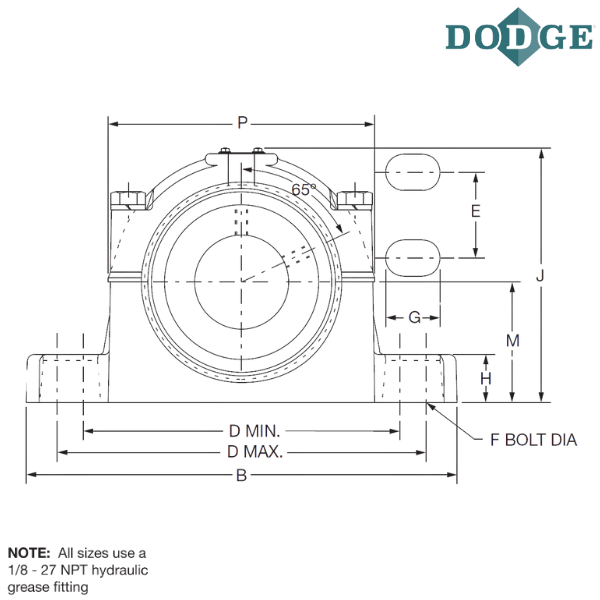

Overall Length (B) inch - 12.59
C (inch) - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 9.88
Bolt to Bolt Maximum Distance (D max) inch - 11
E (inch) - 2.13
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.33
H (inch) - 1
Overall Height (J) inch - 7.67
L (inch) - 4.72
Base to Center Height (M) inch - 3.5
P (inch) - 8.31
EXP* (inch) - 0.28125
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
5XX - Housing Series (TAF Only)
R - “XTS” Triple Lip Seal
E - Expansion Type Bearing

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

** Images are for representation purposes only
