Description
Brand - DODGE
Item Number - 037632 DODGE - S1U509-TAF-107
Category - TAF Units - Inch (“S-1” Units - Gray Iron)
Shaft Size (inch) - 1.4375
Part Name - S1U509-TAF-107
Approximate Weight (lbs) - 5

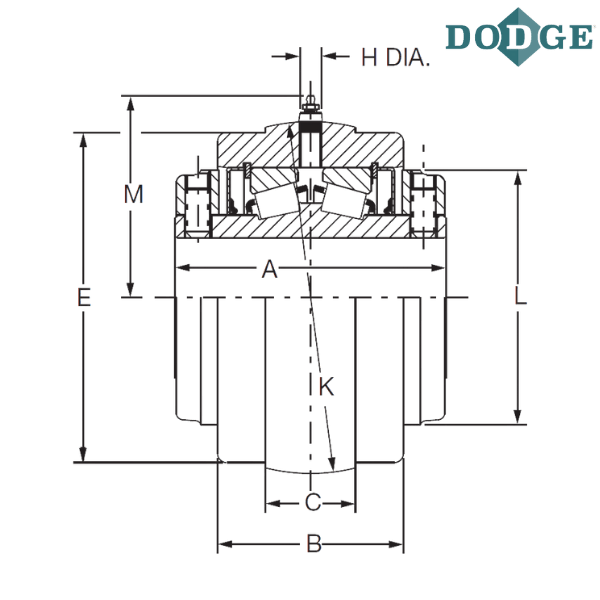

Length Through Bore (A) inch - 3
B (inch) - 2.06
C (inch) - 1.16
Insert Outer Diameter (E, Machine Side) inch - 3.25
E (Cast Side) inch - 3.31
H (inch) - 0.75
K * (inch) - 3.595
L (inch) - 2.75
M (inch) - 2.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
S1U - S-1, Unit Cast Iron
* +.000,-.001”

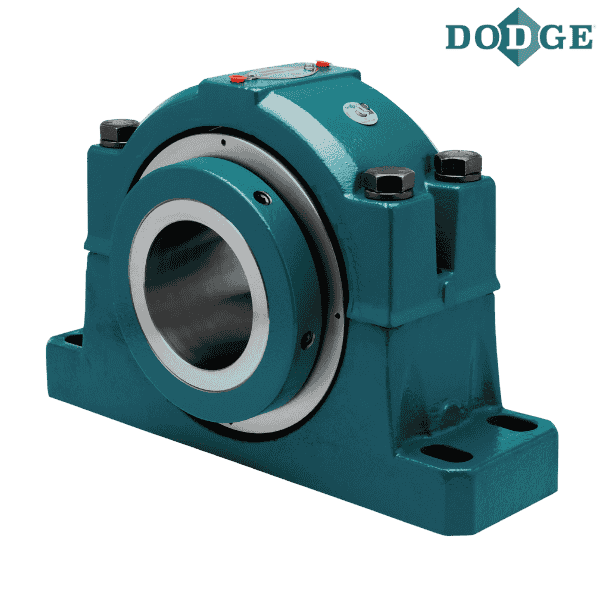

** Images are for representation purposes only
