Description
Brand - DODGE
Item Number - 037634 DODGE - S1U511-TAF-115
Category - TAF Units - Inch (“S-1” Units - Gray Iron)
Shaft Size (inch) - 1.9375
Part Name - S1U511-TAF-115
Approximate Weight (lbs) - 8

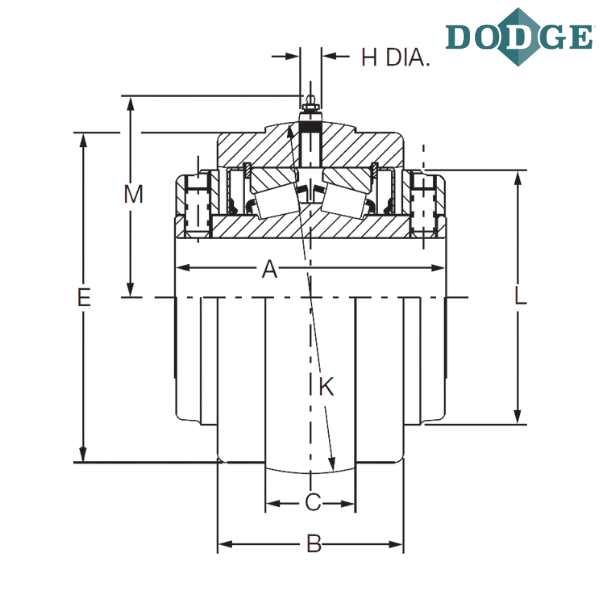

Length Through Bore (A) inch - 3.5
B (inch) - 2.44
C (inch) - 1.5
Insert Outer Diameter (E, Machine Side) inch - 4.13
E (Cast Side) inch - 4.18
H (inch) - 0.75
K * (inch) - 4.502
L (inch) - 3.44
M (inch) - 2.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
S1U - S-1, Unit Cast Iron
* +.000,-.001”

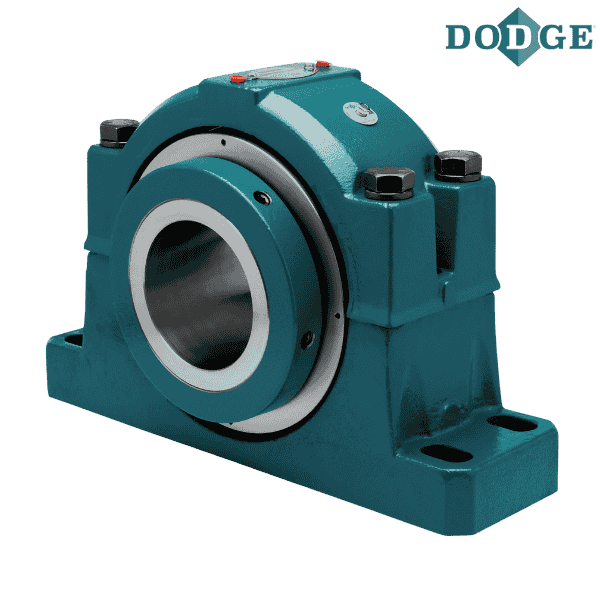

** Images are for representation purposes only
