Description
Brand - DODGE
Item Number - 037647 DODGE - S1U526-TAF-408
Category - TAF Units - Inch (“S-1” Units - Gray Iron)
Shaft Size (inch) - 4.5
Part Name - S1U526-TAF-408
Approximate Weight (lbs) - 68

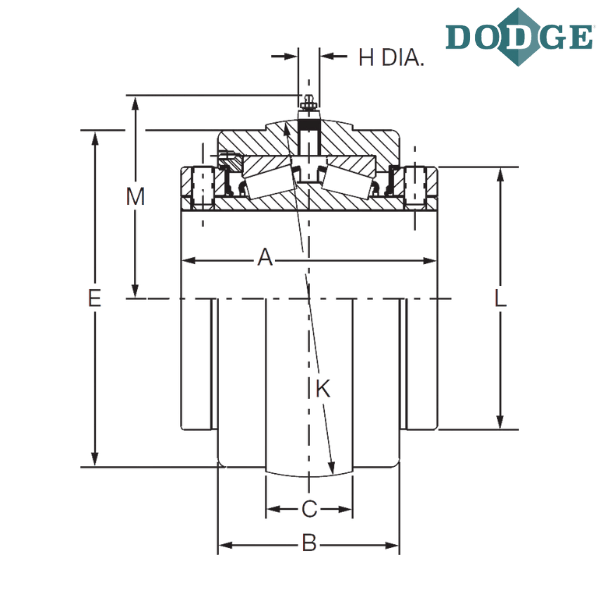

Length Through Bore (A) inch - 6.75
B (inch) - 4.63
C (inch) - 2.56
Insert Outer Diameter (E, Machine Side) inch - 8.31
E (Cast Side) inch - 8.32
H (inch) - 0.94
K ** (inch) - 8.812
L (inch) - 6.45
M (inch) - 5.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
S1U - S-1, Unit Cast Iron
** +.0005

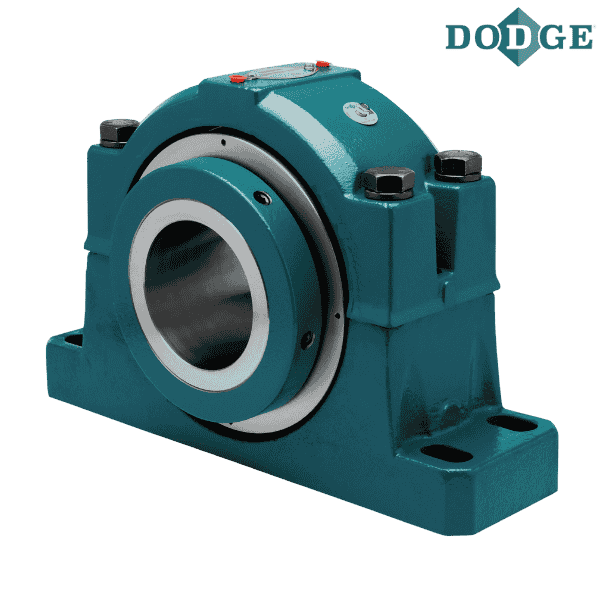

*** Images are for representation purposes only
