Description
Brand - DODGE
Item Number - 037927 DODGE - INS-IP-515R
Category - IMPERIAL Bearing Insert - For Large Bore ISAF Housings (Trident Seal)
Type - Push-Pull Adapter
Bearing Series - 22232
Shaft Size (inch) - 5.9375
Part Name - INS-IP-515R

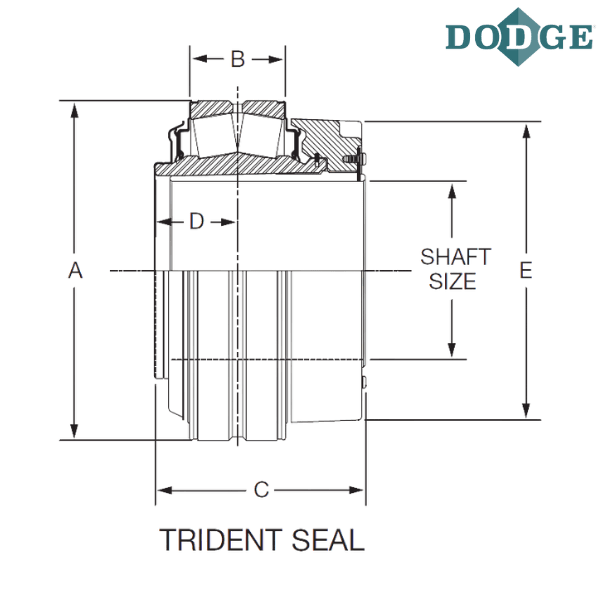

Insert Outer Diameter (A) inch - 11.42
B (inch) - 3.22
Length Through Bore (C) inch - 7.08
D (inch) - 2.77
E (inch) - 10.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

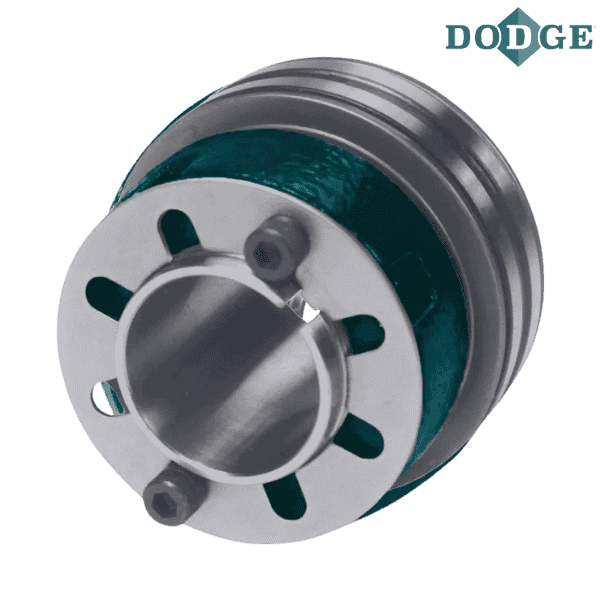

** Images are for representation purposes only
