Description
Brand - DODGE

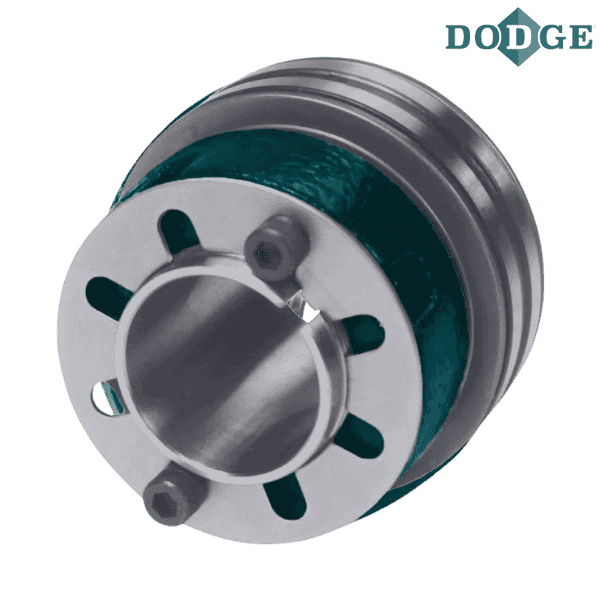

Item Number - 037933 DODGE - INS-IP-507L
Category - IMPERIAL Bearing Insert - For Large Bore ISAF Housings (Labyrinth Seal)
Type - Push-Pull Adapter
Bearing Series - 22228
Shaft Size (inch) - 5.4375
Part Name - INS-IP-507L

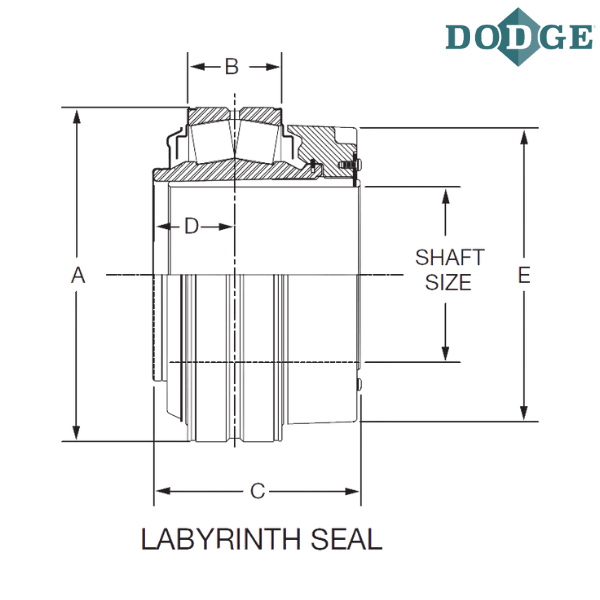

Insert Outer Diameter (A) inch - 9.84
B (inch) - 2.75
Length Through Bore (C) inch - 6.17
D (inch) - 2.34
E (inch) - 8.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
IP - IMPERIAL
L - Labyrinth Metallic Seal
** Images are for representation purposes only
