Description
Brand - DODGE

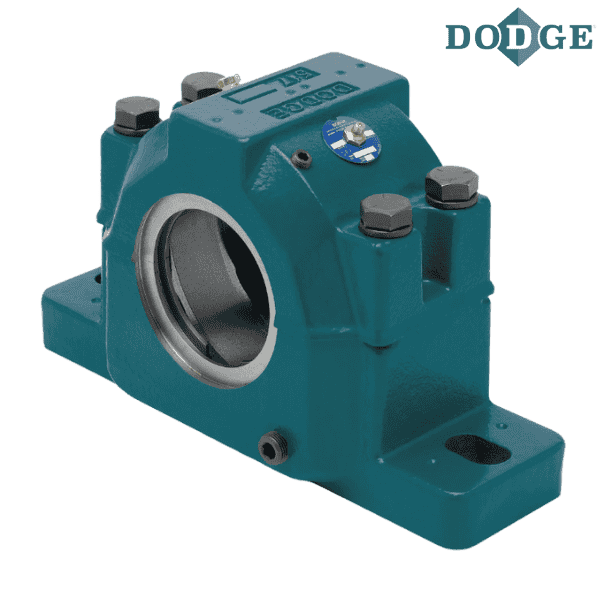

Item Number - 039101 DODGE - P2B510-USAF-111TTAH
Category - USAF 500 Air Handling Pillow Blocks with TRIPLE-TECT Seals

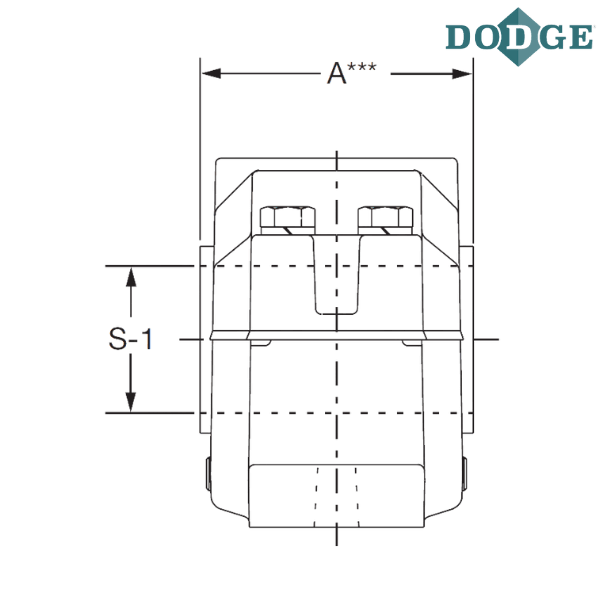

Shaft Diameter (S-1) inch - 1.6875
Description - P2B510-USAF-111TTAH
Housing W/ Stab Ring Item Number - 043996 DODGE - H2S-510-USAF
Bearing Item Number - 422981 DODGE - BRG22210KC3AH
Dynamic Capacity (C) lbf - 26000
Maximum RPM (Grease) - 5300
SNW Item Number - 046351 DODGE - H310-SNW-111
TRIPLE-TECT Seal Item Number - 043579 DODGE - 10TT111
End Cover Item Number - 040701 DODGE - EC10
Notes :

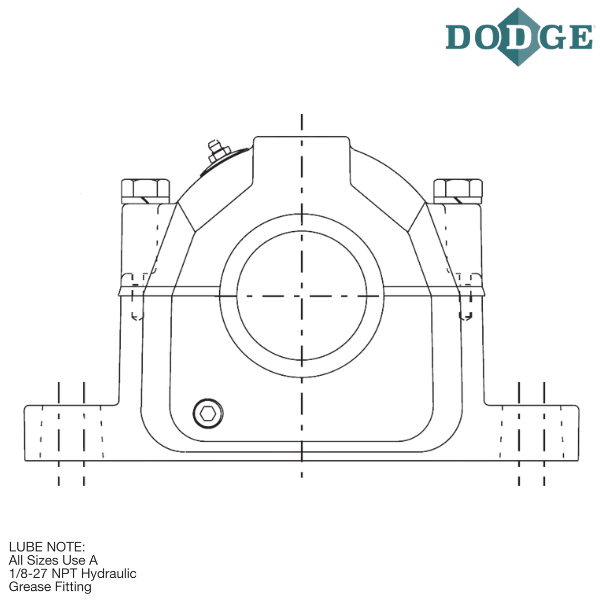

P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
111 - 1-11/16”
TT - TRIPLE-TECT
AH - Air Handling
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
