Description
Brand - DODGE
Item Number - 039102 DODGE - P2B511-USAF-115TTAH
Category - USAF 500 Air Handling Pillow Blocks with TRIPLE-TECT Seals

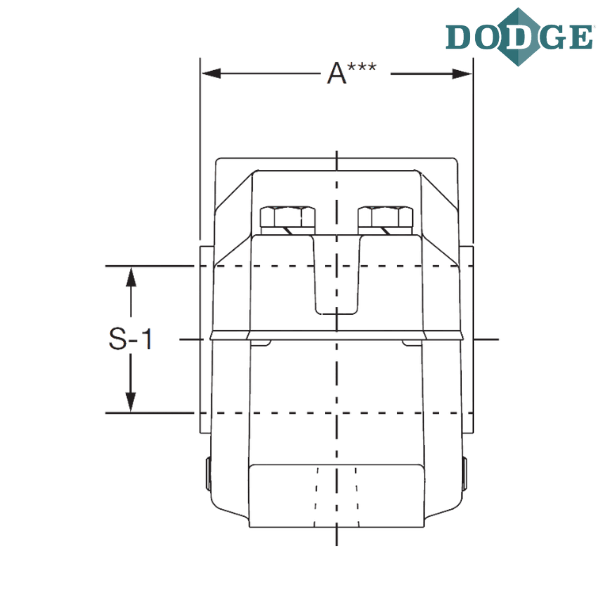

Shaft Diameter (S-1) inch - 1.9375
Description - P2B511-USAF-115TTAH
Housing W/ Stab Ring Item Number - 043997 DODGE - H2S-511-USAF
Bearing Item Number - 422982 DODGE - BRG22211KC3AH
Dynamic Capacity (C) lbf - 31500
Maximum RPM (Grease) - 4500
SNW Item Number - 046352 DODGE - H311-SNW-115
TRIPLE-TECT Seal Item Number - 043540 DODGE - 12TT115
End Cover Item Number - 040702 DODGE - EC12
Notes :

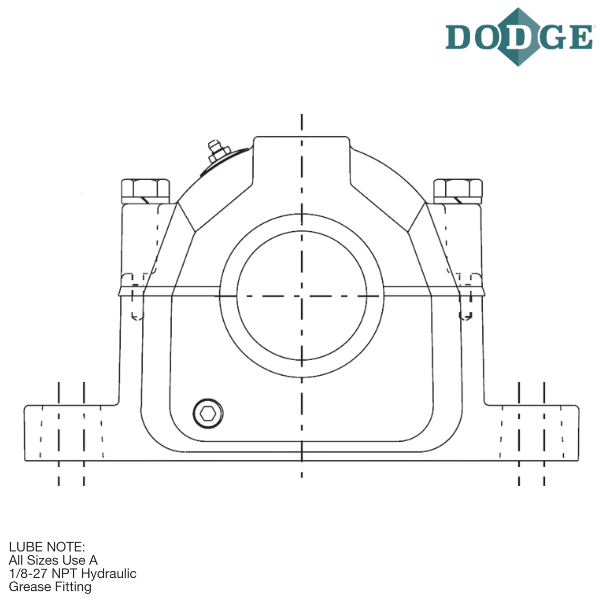

P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
115 - 1-15/16”
TT - TRIPLE-TECT
AH - Air Handling
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance

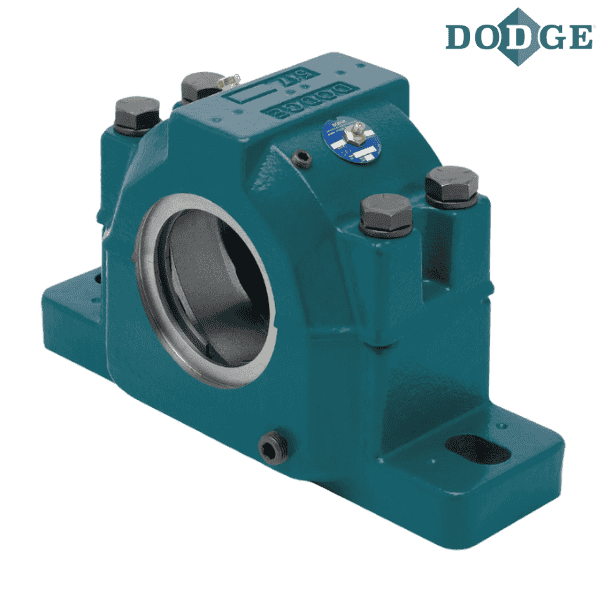

** Images are for representation purposes only
