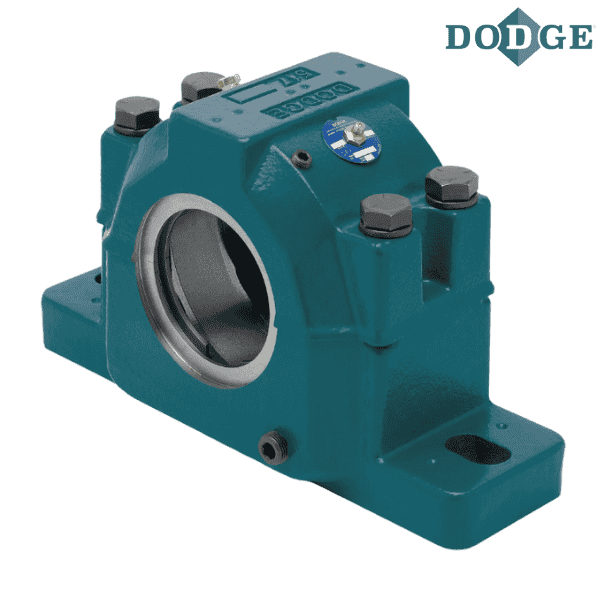

039103 DODGE - P2B513-USAF-203TTAH

Brand - DODGE
Item Number - 039103 DODGE - P2B513-USAF-203TTAH
Category - USAF 500 Air Handling Pillow Blocks with TRIPLE-TECT Seals

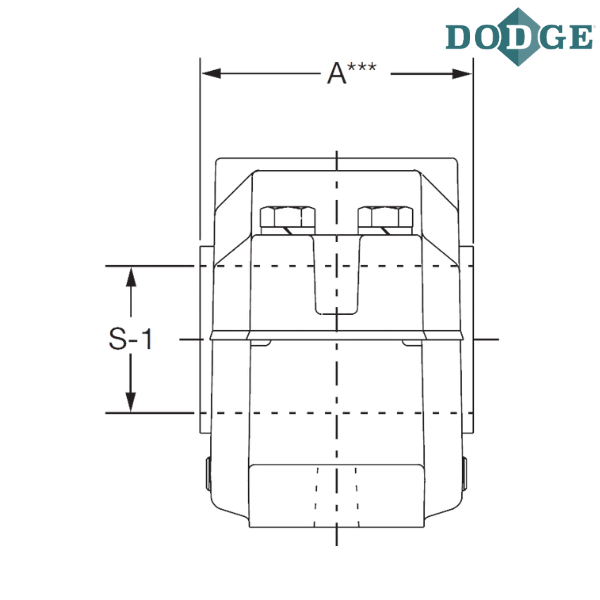

Shaft Diameter (S-1) inch - 2.1875
Description - P2B513-USAF-203TTAH
Housing W/ Stab Ring Item Number - 043998 DODGE - H2S-513-USAF
Bearing Item Number - 422983 DODGE - BRG22213KC3AH
Dynamic Capacity (C) lbf - 45500
Maximum RPM (Grease) - 3800
SNW Item Number - 046353 DODGE - H313-SNW-203
TRIPLE-TECT Seal Item Number - 043541 DODGE - 14TT203
End Cover Item Number - 040703 DODGE - EC14

Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
203 - 2-3/16”
TT - TRIPLE-TECT
AH - Air Handling
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance

** Images are for representation purposes only
