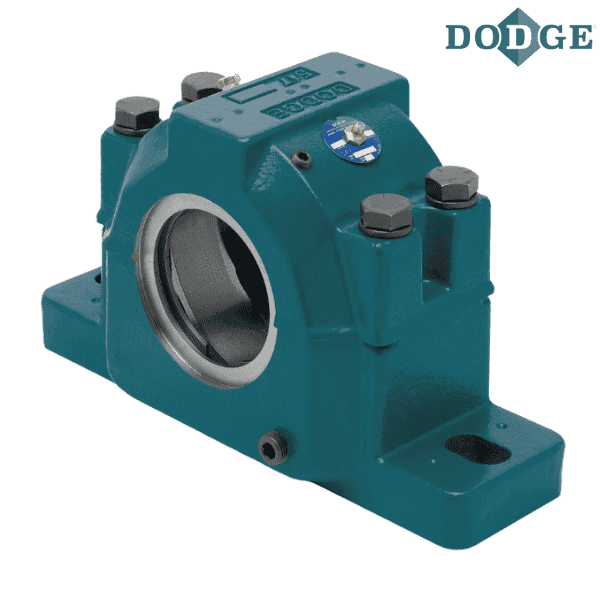

039107 DODGE - P2B516-USAF-212TTAH

Brand - DODGE
Item Number - 039107 DODGE - P2B516-USAF-212TTAH
Category - USAF 500 Air Handling Pillow Blocks with TRIPLE-TECT Seals
Shaft Diameter (S-1) inch - 2.75
Description - P2B516-USAF-212TTAH
Housing W/ Stab Ring Item Number - 044198 DODGE - H2S-516-USAF
Bearing Item Number - 422985 DODGE - BRG22216KC3AH
Dynamic Capacity (C) lbf - 56000
Maximum RPM (Grease) - 3200
SNW Item Number - 046357 DODGE - H316-SNW-212
TRIPLE-TECT Seal Item Number - 043545 DODGE - 24TT212
End Cover Item Number - 040705 DODGE - EC24

Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
212 - 2-3/4”
TT - TRIPLE-TECT
AH - Air Handling
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance

** Images are for representation purposes only
