Description
Brand - DODGE

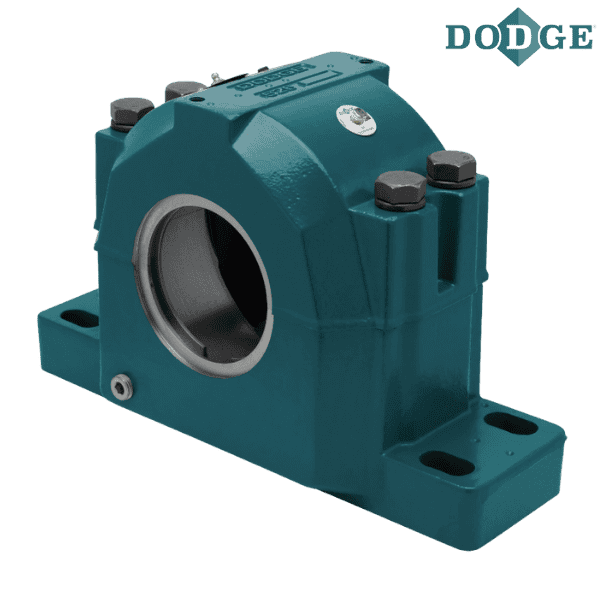

Item Number - 039119 DODGE - P4B517-USAF-300TTAH
Category - USAF 500 Air Handling Pillow Blocks with TRIPLE-TECT Seals

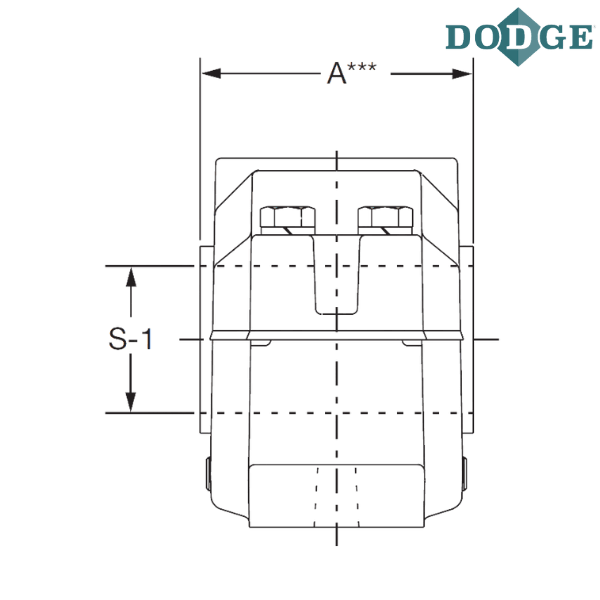

Shaft Diameter (S-1) inch - 3
Description - P4B517-USAF-300TTAH
Housing W/ Stab Ring Item Number - 044013 DODGE - H4S-517-USAF
Bearing Item Number - 422986 DODGE - BRG22217KC3AH
Dynamic Capacity (C) lbf - 68000
Maximum RPM (Grease) - 3000
SNW Item Number - 046359 DODGE - H317-SNW-300
TRIPLE-TECT Seal Item Number - 043547 DODGE - 28TT300
End Cover Item Number - 040706 DODGE - EC28
Notes :

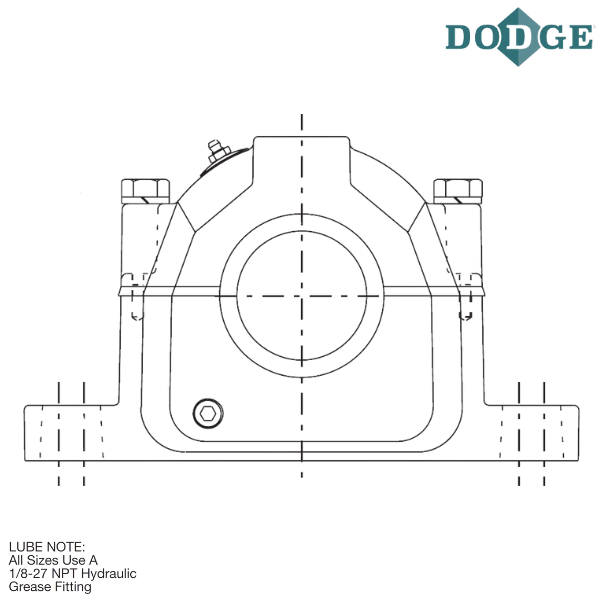

P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
300 - 3”
TT - TRIPLE-TECT
AH - Air Handling
H4S - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
