Description
Brand - DODGE
Item Number - 039120 DODGE - P4B518-USAF-303TTAH
Category - USAF 500 Air Handling Pillow Blocks with TRIPLE-TECT Seals

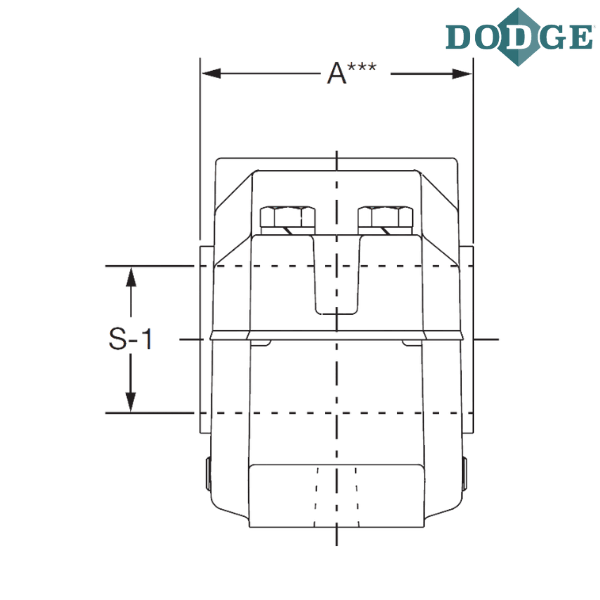

Shaft Diameter (S-1) inch - 3.1875
Description - P4B518-USAF-303TTAH
Housing W/ Stab Ring Item Number - 044114 DODGE - H4S-518-USAF
Bearing Item Number - 422987 DODGE - BRG22218KC3AH
Dynamic Capacity (C) lbf - 78000
Maximum RPM (Grease) - 2600
SNW Item Number - 046360 DODGE - H318-SNW-303
TRIPLE-TECT Seal Item Number - 043548 DODGE - 34TT303
End Cover Item Number - 040707 DODGE - EC34
Notes :

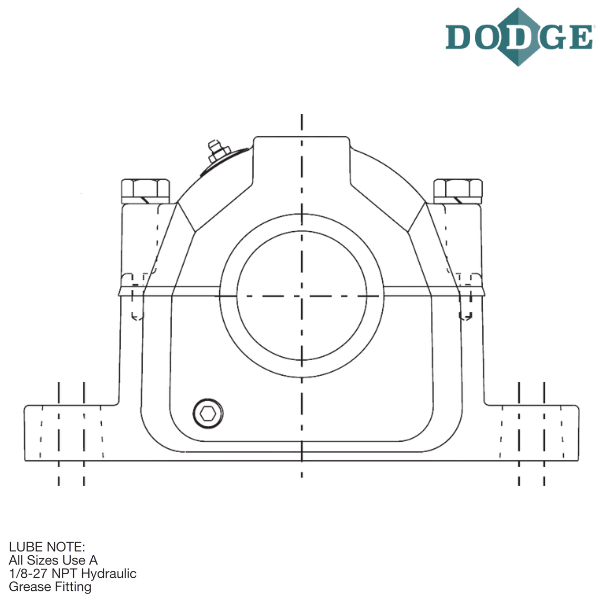

P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
303 - 3-3/16”
TT - TRIPLE-TECT
AH - Air Handling
H4S - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance

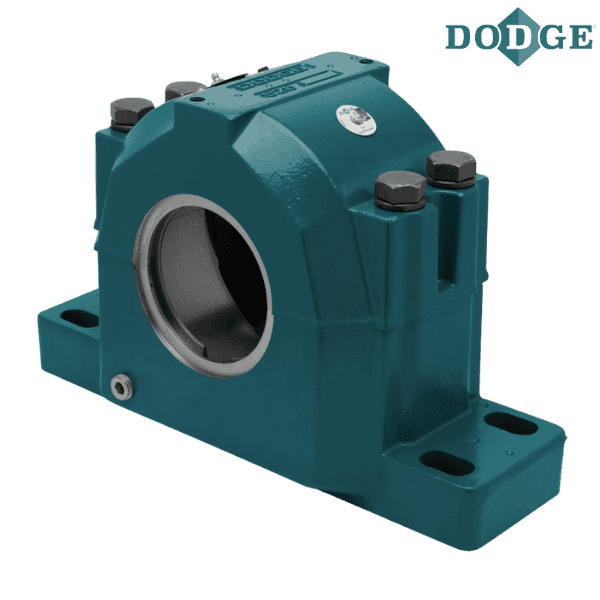

** Images are for representation purposes only
