Description
Brand - DODGE
Item Number - 039122 DODGE - P4B520-USAF-308TTAH
Category - USAF 500 Air Handling Pillow Blocks with TRIPLE-TECT Seals

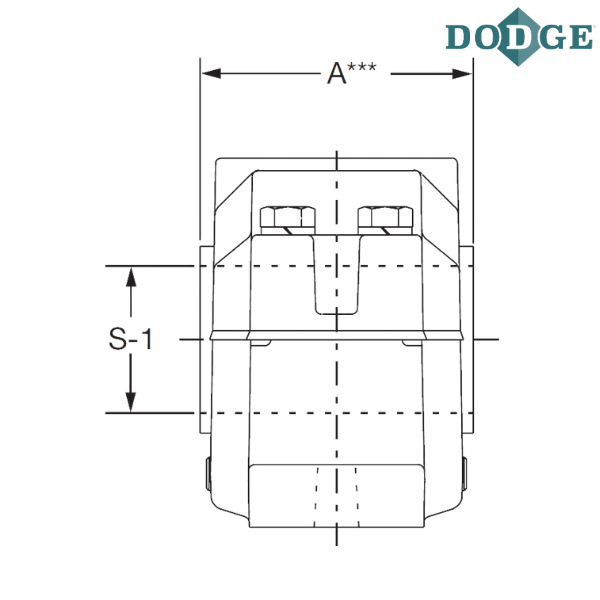

Shaft Diameter (S-1) inch - 3.5
Description - P4B520-USAF-308TTAH
Housing W/ Stab Ring Item Number - 044023 DODGE - H4S-520-USAF
Bearing Item Number - 422988 DODGE - BRG22220KC3AH
Dynamic Capacity (C) lbf - 96500
Maximum RPM (Grease) - 2200
SNW Item Number - 046362 DODGE - H320-SNW-308
TRIPLE-TECT Seal Item Number - 043550 DODGE - 46TT308
End Cover Item Number - 040708 DODGE - EC46
Notes :
P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
308 - 3-1/2”
TT - TRIPLE-TECT
AH - Air Handling
H4S - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance

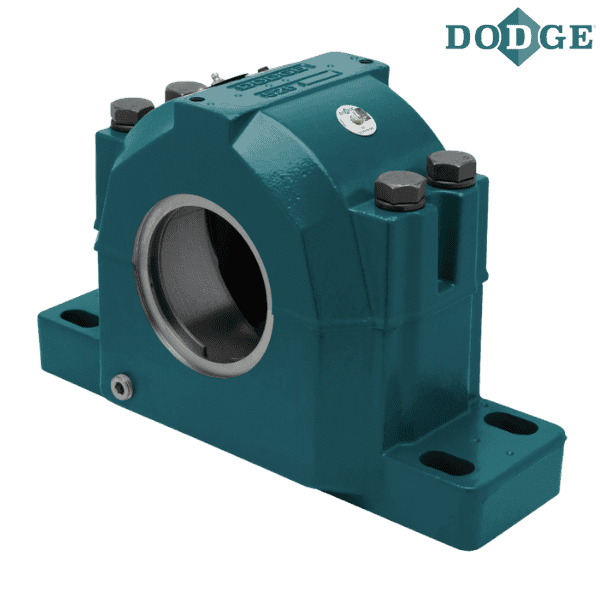

** Images are for representation purposes only
