042005 DODGE - P2B516-SFXT-211TT SAF-XT

Brand - DODGE
Item Number - 042005 DODGE - P2B516-SFXT-211TT SAF-XT
Category - SAF-XT Pillow Blocks - 2-Bolt Base (22200K Adapter Mount Bearings)
Part Number * - 042005
Description - P2B516-SFXT-211TT SAF-XT
Shaft Size (inch) - 2.6875
Complete Pillow Block Designation SAF-XT - 22516
Weight (lbs) - 36.3

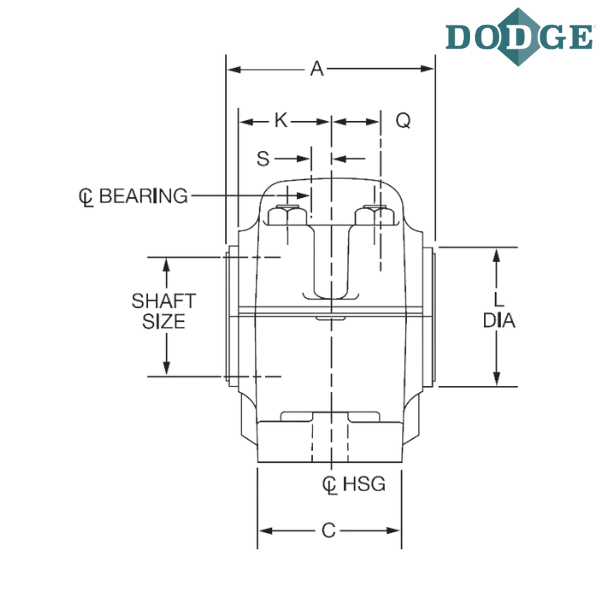

Dimension of A With Triple-Tect Seal (Std.) inch - 5.23
Dimension of A With LER Seal (Optional) inch - 4.61
Dimension of A With Auxiliary Seal (Optional) inch - 7.63

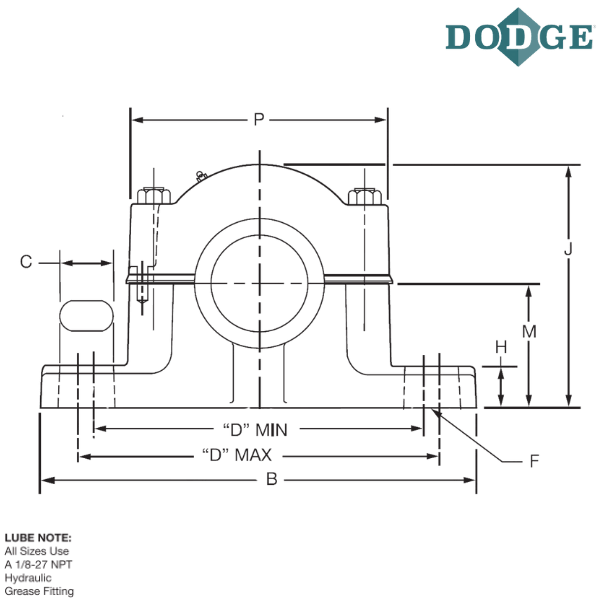

Overall Length (B) inch - 13
C (inch) - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 10.13
Bolt to Bolt Maximum Distance (D max) inch - 10.63
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.12
H (inch) - 1.5
Overall Height (J) inch - 6.88
K (inch) - 2.28
L (inch) ** - 3.69
Base to Center Height (M) inch - 3.5
P (inch) - 7.94
Q (inch) *** - 1.28
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.19
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.38

Notes :
* Part Number Includes
1) Furnished unless otherwise specified
2) housing with Spacers
3) Standard Spherical Bearing
4) SNW Assembly and TRIPLE-TECT Seals.
** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline ( CL) if pillow block is closed end style.

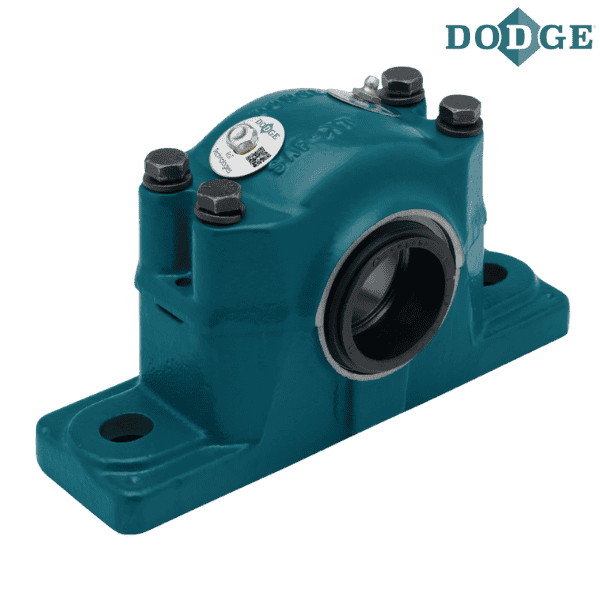

**** Images are for representation purposes only
