042019 DODGE - P4B517-SFXT-215TT SAF-XT

Brand - DODGE
Item Number - 042019 DODGE - P4B517-SFXT-215TT SAF-XT
Category - SAF-XT Pillow Blocks - 4-Bolt Base (22200K/23000K Adapter Mount Bearings)
Part Number * - 042019
Description - P4B517-SFXT-215TT SAF-XT
Shaft Size (inch) - 2.9375
Complete Pillow Block Designation SAF-XT - 22517
Weight (lbs) - 42.3

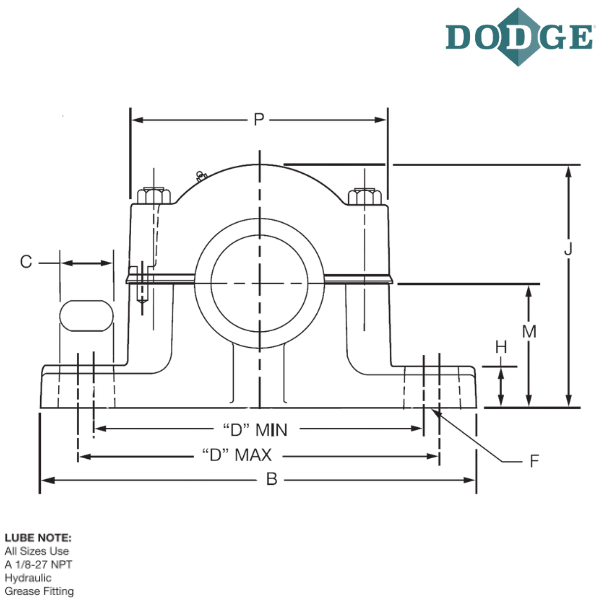

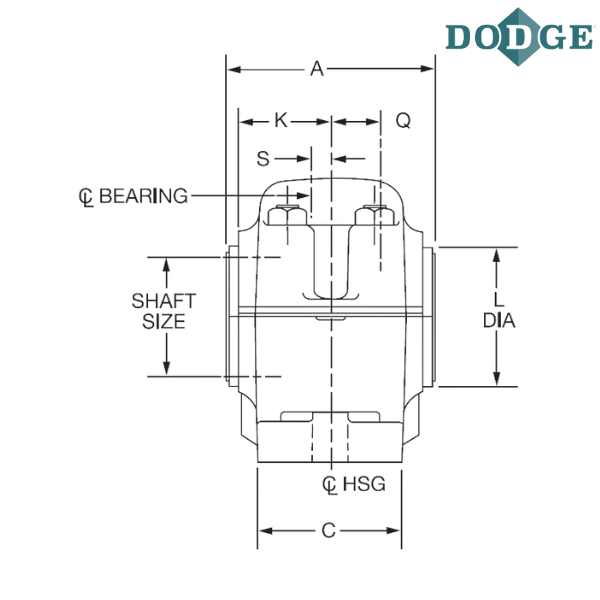

Dimension of A With Triple-Tect Seal (Std.) inch - 5.48
Dimension of A With LER Seal (Optional) inch - 4.86
Dimension of A With Auxiliary Seal (Optional) inch - 7.88
Overall Length (B) inch - 13
C (inch) - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 10
Bolt to Bolt Maximum Distance (D max) inch - 11

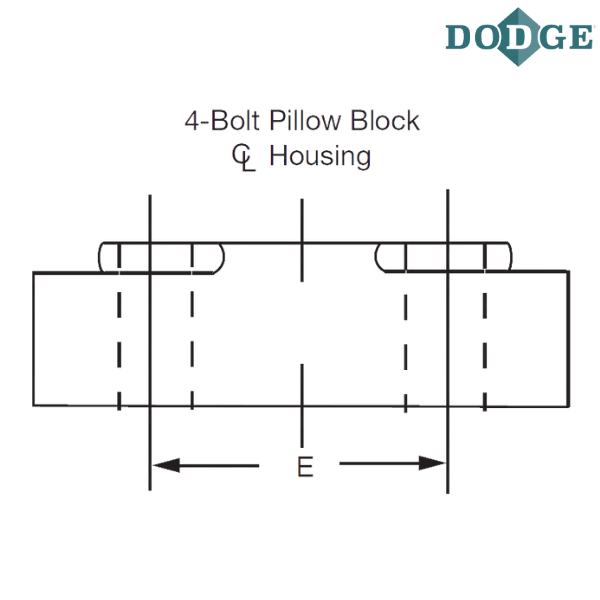

E (inch) - 2.13
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.25
H (inch) - 1.5
Overall Height (J) inch - 7.38
K (inch) - 2.41
L (inch) ** - 3.42
Base to Center Height (M) inch - 3.75
P (inch) - 7.94
Q (inch) *** - 1.38
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.19
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.38

Notes :
* Part Number Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.

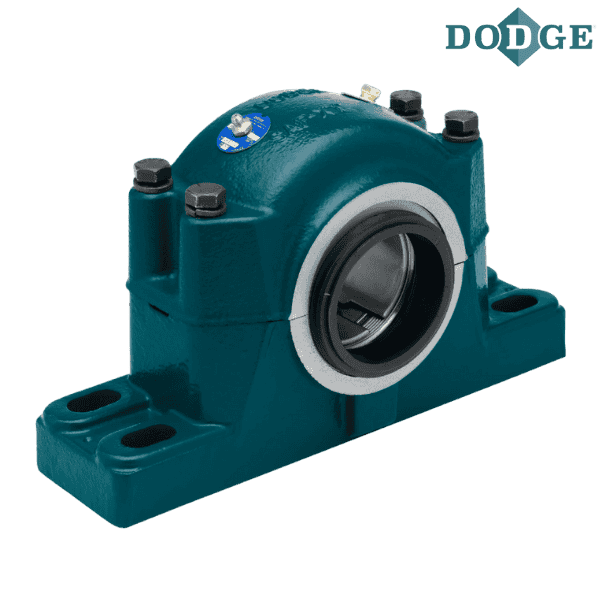

**** Images are for representation purposes only
