042030 DODGE - P4B516-SFXT-212TT SAF-XT

Brand - DODGE
Item Number - 042030 DODGE - P4B516-SFXT-212TT SAF-XT
Category - SAF-XT Pillow Blocks - 4-Bolt Base (22200K/23000K Adapter Mount Bearings)
Part Number * - 042030
Description - P4B516-SFXT-212TT SAF-XT
Shaft Size (inch) - 2.75
Complete Pillow Block Designation SAF-XT - 22516
Weight (lbs) - 36.1

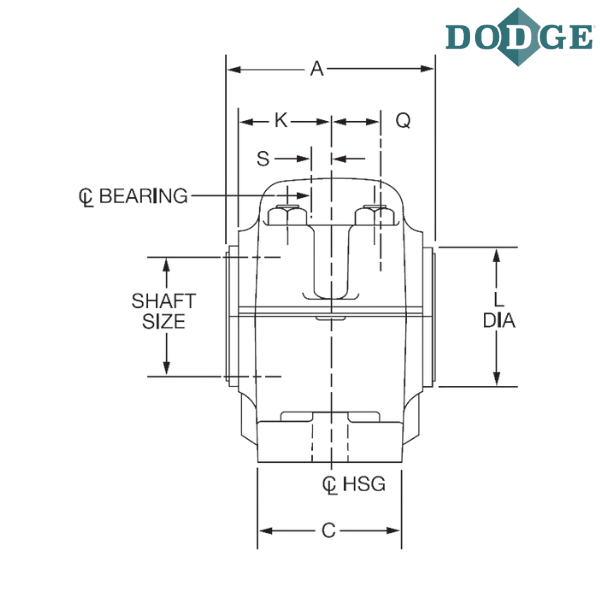

Dimension of A With Triple-Tect Seal (Std.) inch - 5.23
Dimension of A With LER Seal (Optional) inch - 4.61
Dimension of A With Auxiliary Seal (Optional) inch - 7.63

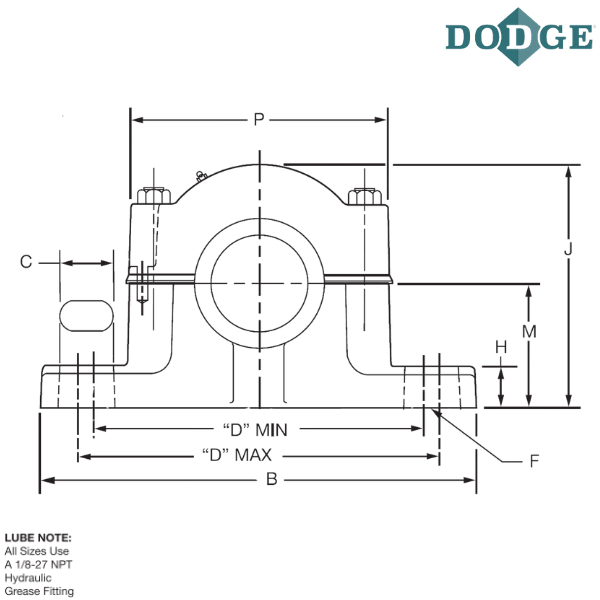

Overall Length (B) inch - 13
C (inch) - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 9.08
Bolt to Bolt Maximum Distance (D max) inch - 10.88

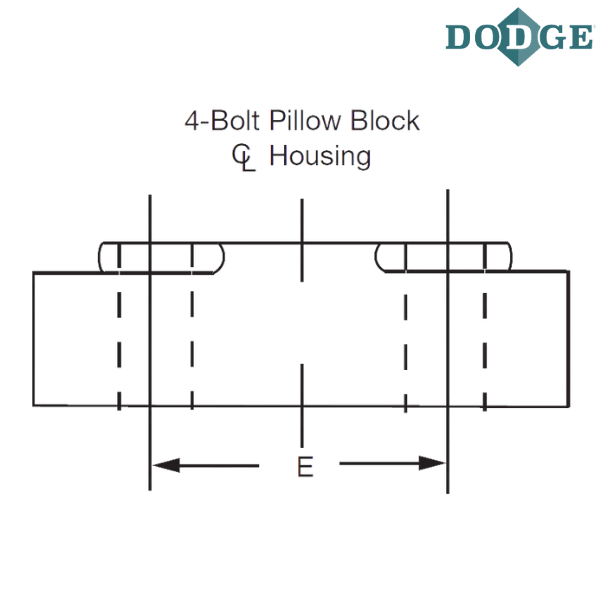

E (inch) - 2.13
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.25
H (inch) - 1.5
Overall Height (J) inch - 6.88
K (inch) - 2.28
L (inch) ** - 3.17
Base to Center Height (M) inch - 3.5
P (inch) - 7.94
Q (inch) *** - 1.28
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.19
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.38

Notes :
* Part Number Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.

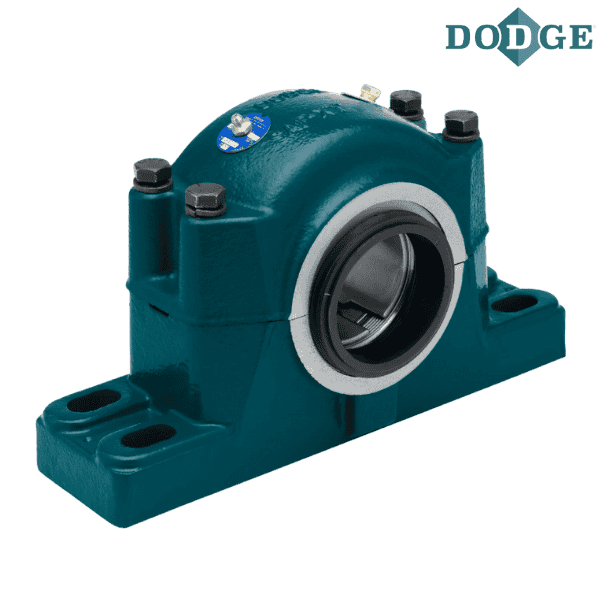

**** Images are for representation purposes only
