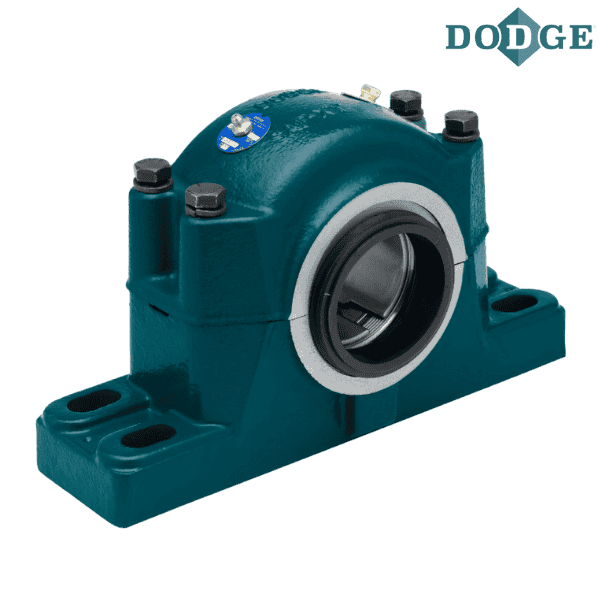

042270 DODGE - P4B524-SFXT-403TT SAF-XT

Brand - DODGE
Item Number - 042270 DODGE - P4B524-SFXT-403TT SAF-XT
Category - SAF-XT Pillow Blocks - 4-Bolt Base (22200K/23000K Adapter Mount Bearings)
Part Number * - 042270
Description - P4B524-SFXT-403TT SAF-XT
Shaft Size (inch) - 4.1875
Complete Pillow Block Designation SAF-XT - 22524
Weight (lbs) - 101.8

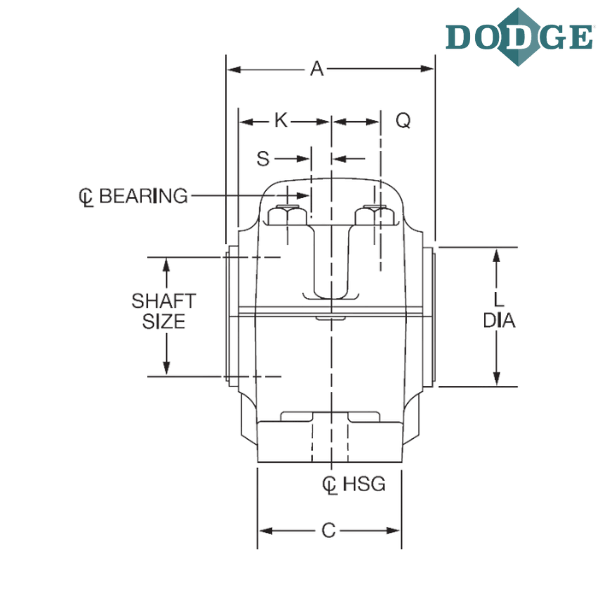

Dimension of A With Triple-Tect Seal (Std.) inch - 6.97
Dimension of A With LER Seal (Optional) inch - 6.38
Dimension of A With Auxiliary Seal (Optional) inch - 8.89

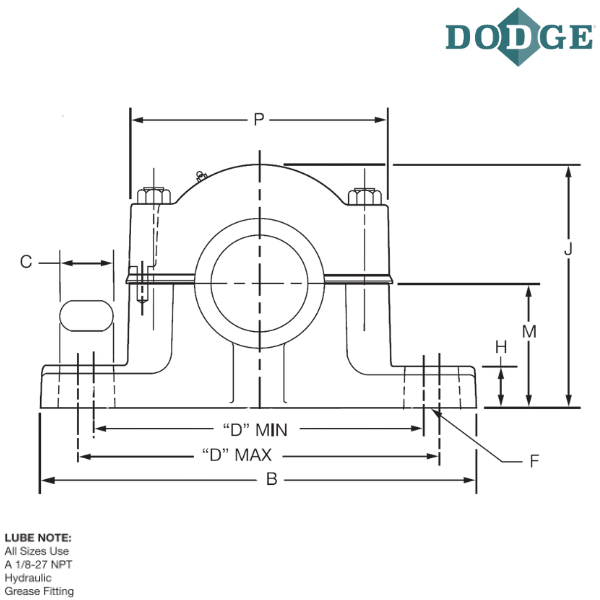

Overall Length (B) inch - 16.5
C (inch) - 4.75
Bolt to Bolt Minimum Distance (D min) inch - 13.25
Bolt to Bolt Maximum Distance (D max) inch - 14.5

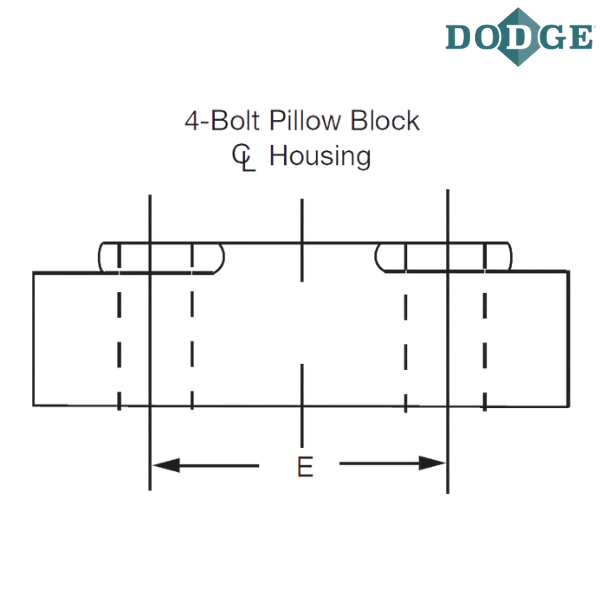

E (inch) - 2.75
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.5
H (inch) - 1.75
Overall Height (J) inch - 10.25
K (inch) - 3.06
L (inch) ** - 4.59
Base to Center Height (M) inch - 5.25
P (inch) - 10.81
Q (inch) *** - 1.81
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.42
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.61

Notes :
* Part Number Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.

**** Images are for representation purposes only
