042272 DODGE - P4B526-SFXT-408TT SAF-XT

Brand - DODGE
Item Number - 042272 DODGE - P4B526-SFXT-408TT SAF-XT
Category - SAF-XT Pillow Blocks - 4-Bolt Base (22200K/23000K Adapter Mount Bearings)
Part Number * - 042272
Description - P4B526-SFXT-408TT SAF-XT
Shaft Size (inch) - 4.5
Complete Pillow Block Designation SAF-XT - 22526
Weight (lbs) - 147.7

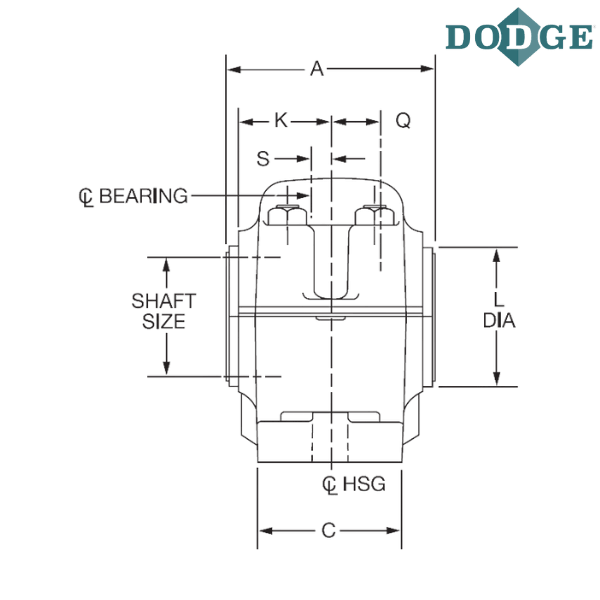

Dimension of A With Triple-Tect Seal (Std.) inch - 7.41
Dimension of A With LER Seal (Optional) inch - 6.81
Dimension of A With Auxiliary Seal (Optional) inch - 9.45

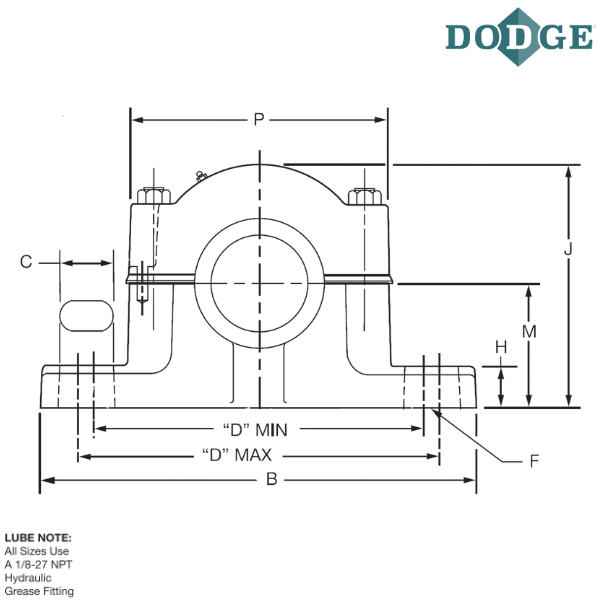

Overall Length (B) inch - 18.38
C (inch) - 5.13
Bolt to Bolt Minimum Distance (D min) inch - 14.5
Bolt to Bolt Maximum Distance (D max) inch - 16

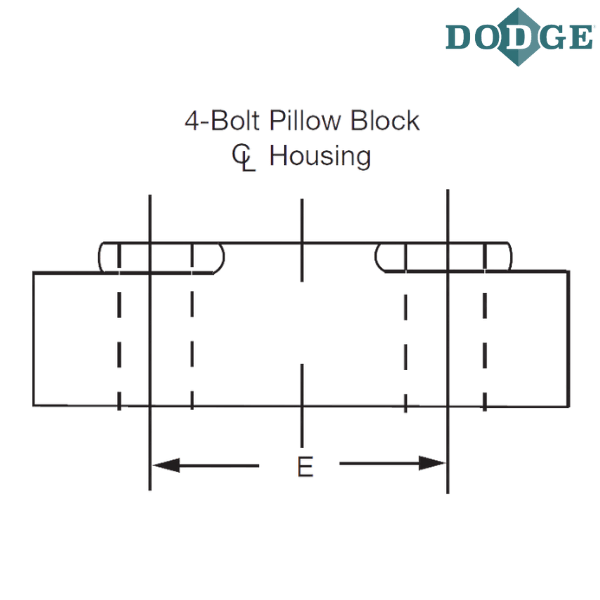

E (inch) - 3.25
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.75
H (inch) - 2.5
Overall Height (J) inch - 11.69
K (inch) - 3.28
L (inch) ** - 4.94
Base to Center Height (M) inch - 6
P (inch) - 11.63
Q (inch) *** - 1.95
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.45
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.64

Notes :
* Part Number Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.

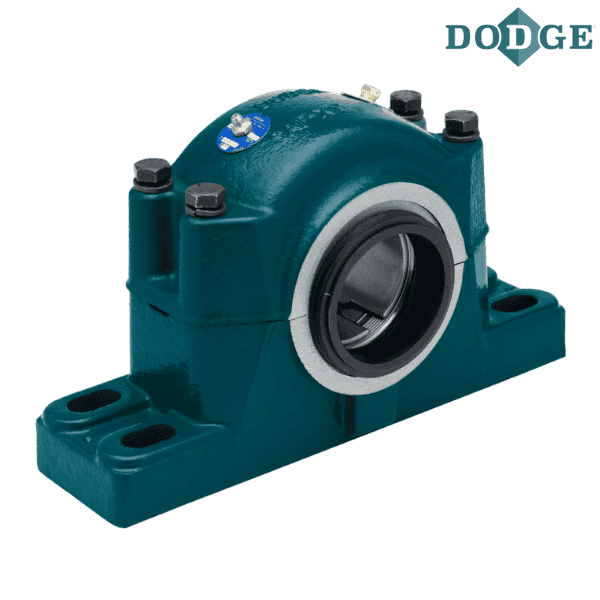

**** Images are for representation purposes only
