042282 DODGE - P4B530-SFXT-503TT SAF-XT

Brand - DODGE
Item Number - 042282 DODGE - P4B530-SFXT-503TT SAF-XT
Category - SAF-XT Pillow Blocks - 4-Bolt Base (22200K/23000K Adapter Mount Bearings)
Part Number * - 042282
Description - P4B530-SFXT-503TT SAF-XT
Shaft Size (inch) - 5.1875
Complete Pillow Block Designation SAF-XT - 22530
Weight (lbs) - 215

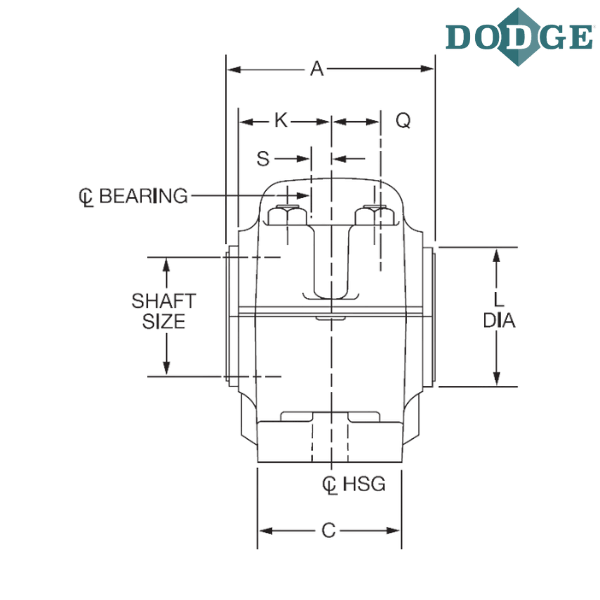

Dimension of A With Triple-Tect Seal (Std.) inch - 7.97
Dimension of A With LER Seal (Optional) inch - 7.38
Dimension of A With Auxiliary Seal (Optional) inch - 10.64

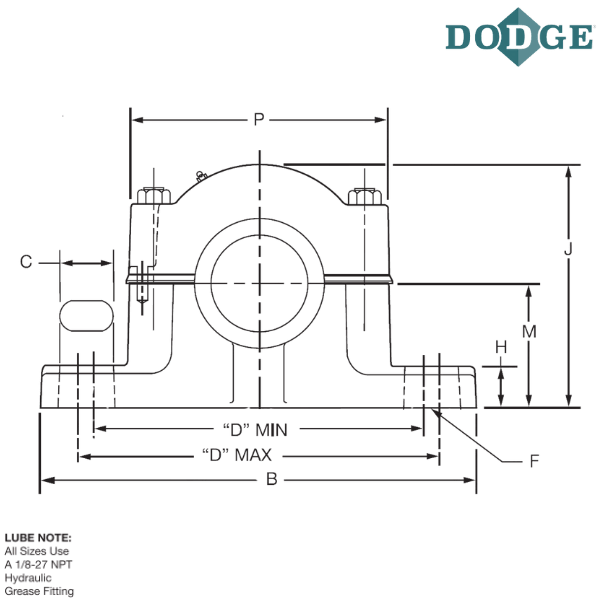

Overall Length (B) inch - 21.25
C (inch) - 6.25
Bolt to Bolt Minimum Distance (D min) inch - 16.75
Bolt to Bolt Maximum Distance (D max) inch - 18.5

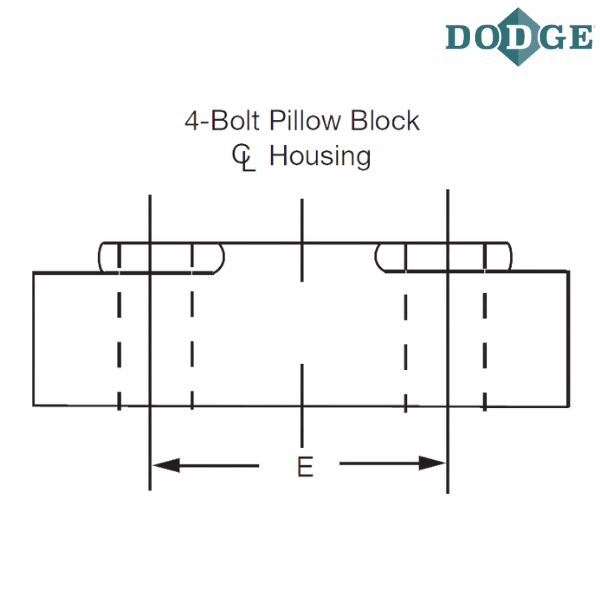

E (inch) - 3.75
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 2.5
Overall Height (J) inch - 12.31
K (inch) - 3.56
L (inch) ** - 5.77
Base to Center Height (M) inch - 6.31
P (inch) - 13.56
Q (inch) *** - 2.14
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.56
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.75

Notes :
* Part Number Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.

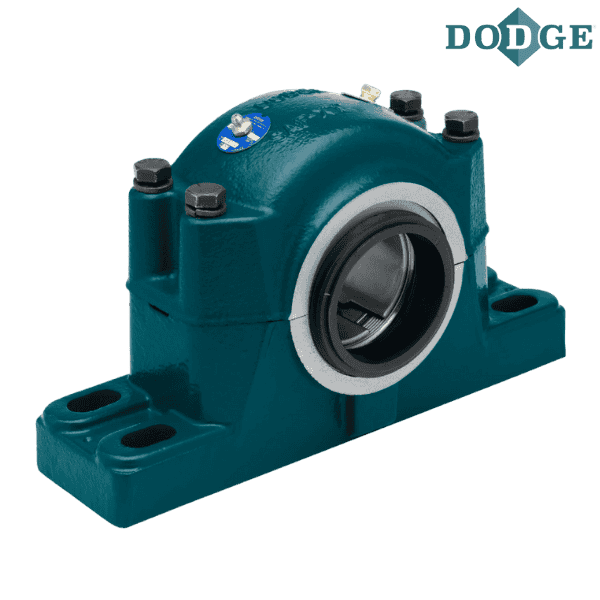

**** Images are for representation purposes only
