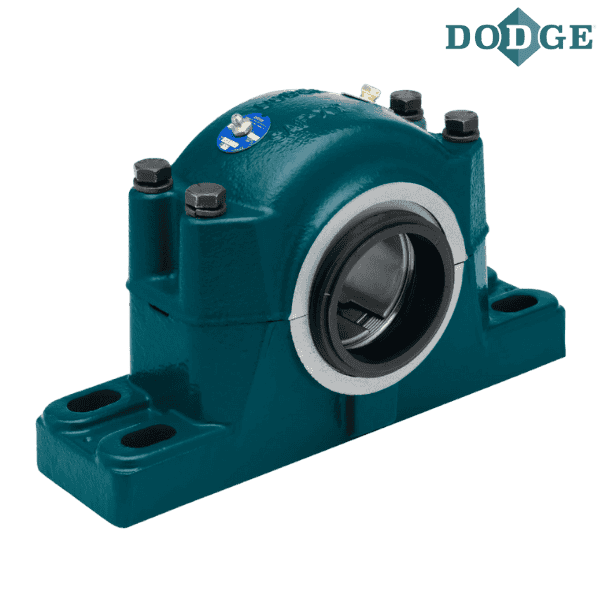

042304 DODGE - P4B534-SFXT-600TT SAF-XT

Brand - DODGE
Item Number - 042304 DODGE - P4B534-SFXT-600TT SAF-XT
Category - SAF-XT Pillow Blocks - 4-Bolt Base (22200K/23000K Adapter Mount Bearings)
Part Number * - 042304
Description - P4B534-SFXT-600TT SAF-XT
Shaft Size (inch) - 6
Complete Pillow Block Designation SAF-XT - 22534
Weight (lbs) - 299

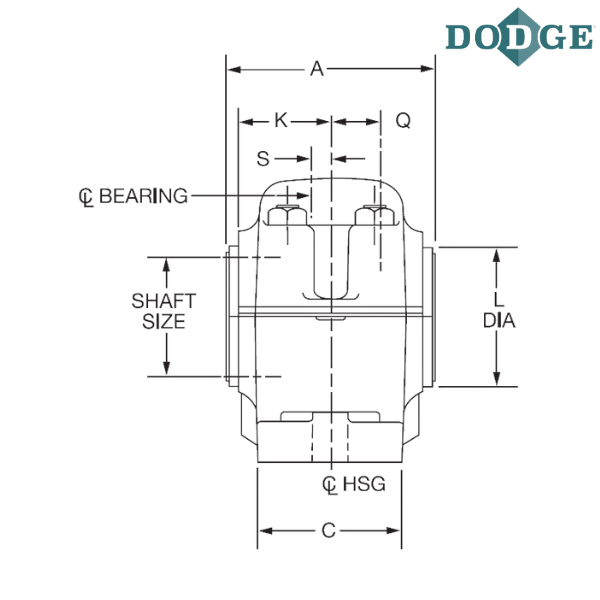

Dimension of A With Triple-Tect Seal (Std.) inch - 8.66
Dimension of A With LER Seal (Optional) inch - 7.94
Dimension of A With Auxiliary Seal (Optional) inch - 10.7

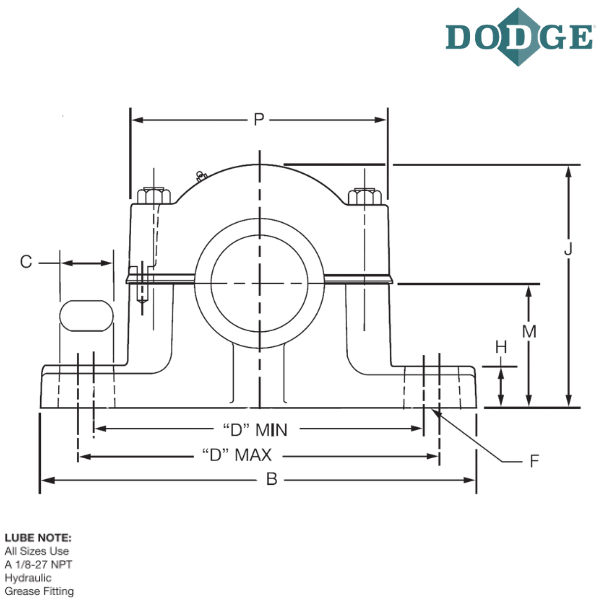

Overall Length (B) inch - 24.75
C (inch) - 6.75
Bolt to Bolt Minimum Distance (D min) inch - 19.63
Bolt to Bolt Maximum Distance (D max) inch - 21.38

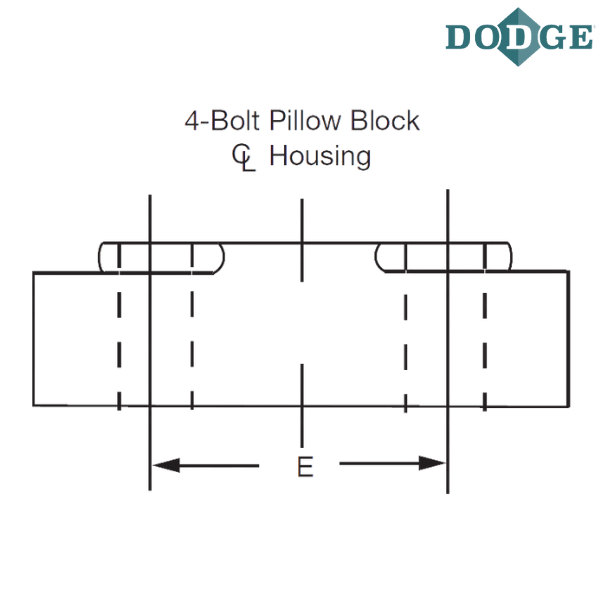

E (inch) - 4.25
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 2.88
Overall Height (J) inch - 14.56
K (inch) - 3.84
L (inch) ** - 6.44
Base to Center Height (M) inch - 7.06
P (inch) - 16.31
Q (inch) *** - 2.47
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.58
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.78

Notes :
* Part Number Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.

**** Images are for representation purposes only
