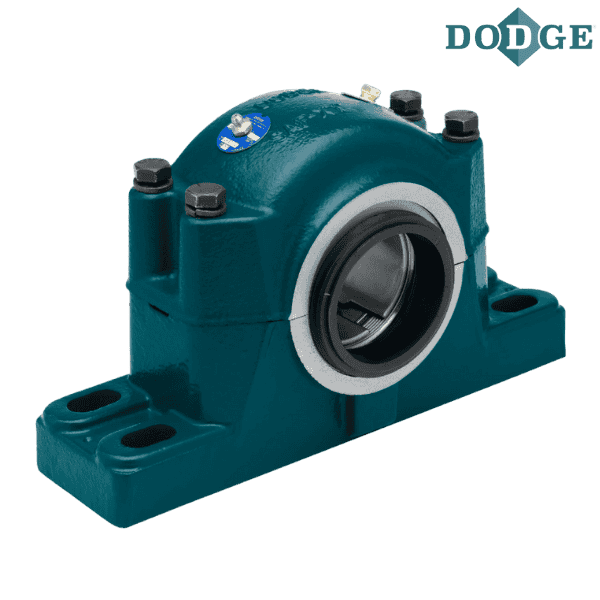

042309 DODGE - P4B544-SFXT-708TT SAF-XT

Brand - DODGE
Item Number - 042309 DODGE - P4B544-SFXT-708TT SAF-XT
Category - SAF-XT Pillow Blocks - 4-Bolt Base (22200K/23000K Adapter Mount Bearings)
Part Number * - 042309
Description - P4B544-SFXT-708TT SAF-XT
Shaft Size (inch) - 7.5
Complete Pillow Block Designation SAF-XT - 22544
Weight (lbs) - 626

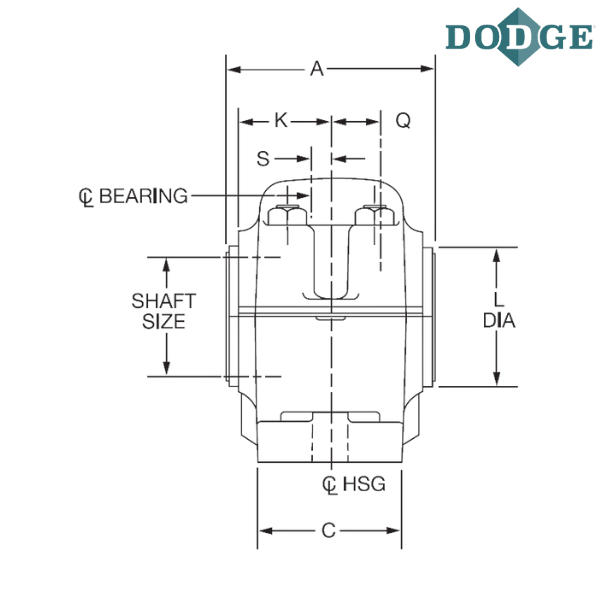

Dimension of A With Triple-Tect Seal (Std.) inch - 10.66
Dimension of A With LER Seal (Optional) inch - 9.94
Dimension of A With Auxiliary Seal (Optional) inch - 13.2
Overall Length (B) inch - 32.75
C (inch) - 8.75

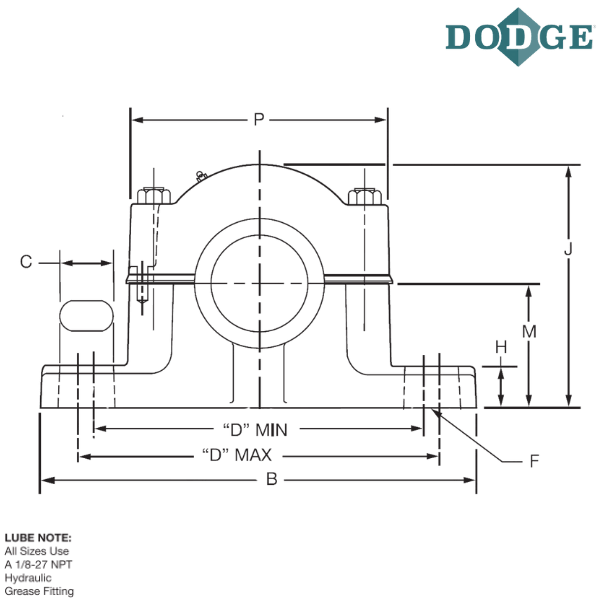

Bolt to Bolt Minimum Distance (D min) inch - 25.13
Bolt to Bolt Maximum Distance (D max) inch - 27.88

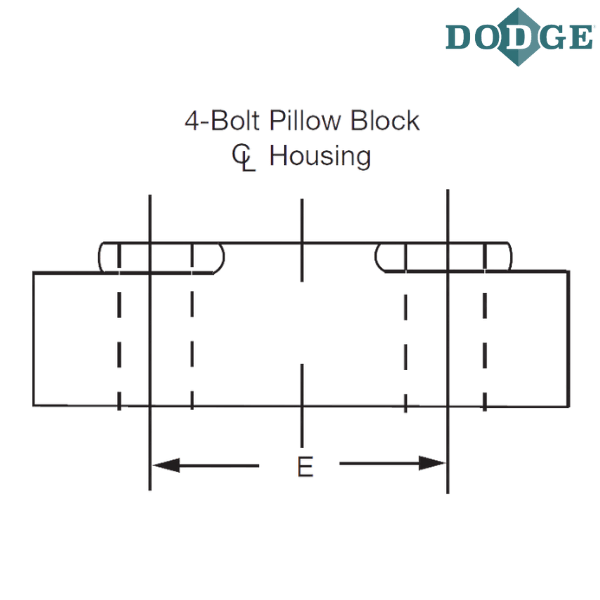

E (inch) - 5.25
F-Bolt Diameter (inch) - 1.5
G (inch) - 3
H (inch) - 3.88
Overall Height (J) inch - 19.25
K (inch) - 4.84
L (inch) ** - 7.94
Base to Center Height (M) inch - 9.5
P (inch) - 20.63
Q (inch) *** - 2.92
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.72
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.72

Notes :
* Part Number Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.

**** Images are for representation purposes only
