042410 DODGE - SP4B515-SAFS-207TT

Brand - DODGE
Item Number - 042410 DODGE - SP4B515-SAFS-207TT
Category - SAFS 4-Bolt Steel Housing Pillow Blocks (22200K/2300K Adapter Mount Bearing)
Description - SP4B515-SAFS-207TT
Shaft Size (inch) - 2.4375
Housing Number - 515
Housing Item Number - 042428 DODGE - SH4S-515-SAFS
Approximate Weight (lbs) - 24
Dimension of A With Triple-Tect Seal (Std.) inch - 5.16
Dimension of A With LER/ER Seal (Optional) inch - 4.67
Dimension of A With Auxiliary Seal (Optional) inch - 7.44
Overall Length (B) inch - 11.25
C (inch) - 3.13
Bolt to Bolt Minimum Distance (D min) inch - 8.63
Bolt to Bolt Maximum Distance (D max) inch - 9.63
E (inch) - 1.88
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.13
H (inch) - 1.25
Overall Height (J) inch - 6.44
K (inch) - 2.31
L (inch) ** - 2.8
Base to Center Height (M) inch - 3.25
P (inch) - 7.06
Q (inch) *** - 1.34
S (inch) **** - 0.13
W (inch) - 1.16
Z (inch) - 0.63

Notes :
* Complete Pillow Block Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Based on TRIPLE-TECT seals.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.
**** Non-expansion bearing offset from centerline. For Expansion Bearing S = 0.

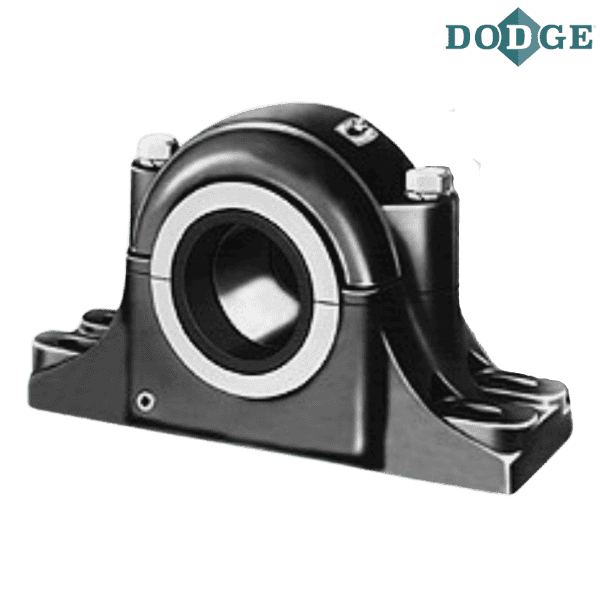

***** Images are for representation purposes only
