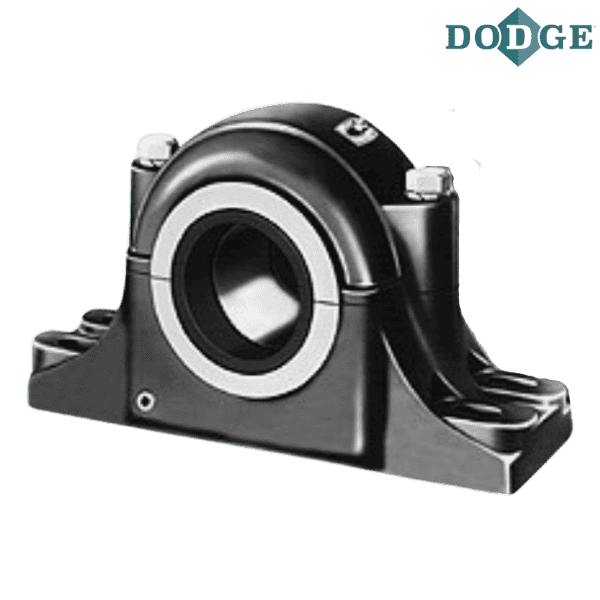

042414 DODGE - SP4B520-SAFS-307TT

Brand - DODGE
Item Number - 042414 DODGE - SP4B520-SAFS-307TT
Category - SAFS 4-Bolt Steel Housing Pillow Blocks (22200K/2300K Adapter Mount Bearing)
Description - SP4B520-SAFS-307TT
Shaft Size (inch) - 3.4375
Housing Number - 520
Housing Item Number - 042443 DODGE - SH4S-520-SAFS
Approximate Weight (lbs) - 74
Dimension of A With Triple-Tect Seal (Std.) inch - 6.41
Dimension of A With LER/ER Seal (Optional) inch - 5.81
Dimension of A With Auxiliary Seal (Optional) inch - 8.5
Overall Length (B) inch - 15.25
C (inch) - 4.38
Bolt to Bolt Minimum Distance (D min) inch - 11.75
Bolt to Bolt Maximum Distance (D max) inch - 12.75
E (inch) - 2.38
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.38
H (inch) - 1.75
Overall Height (J) inch - 8.75
K (inch) - 2.91
L (inch) ** - 3.83
Base to Center Height (M) inch - 4.5
P (inch) - 9.81
Q (inch) *** - 1.89
S (inch) **** - 0.19
W (inch) - 1.64
Z (inch) - 0.94

Notes :
* Complete Pillow Block Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Based on TRIPLE-TECT seals.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.
**** Non-expansion bearing offset from centerline. For Expansion Bearing S = 0.

***** Images are for representation purposes only
