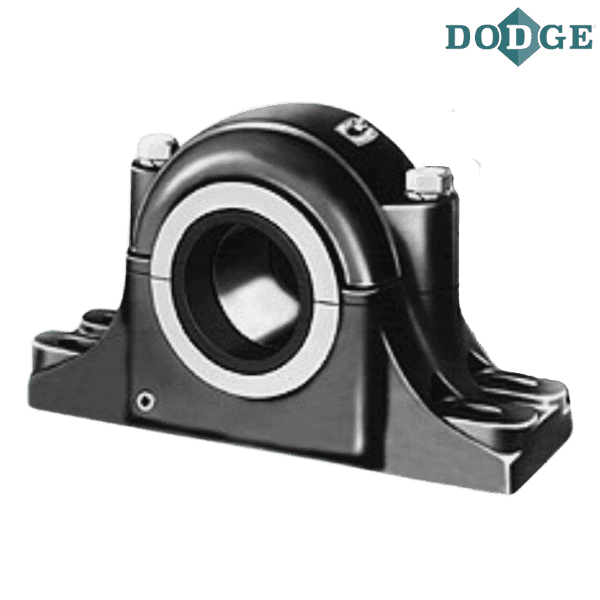

042430 DODGE - SP4B518-SAFS-303TT

Brand - DODGE
Item Number - 042430 DODGE - SP4B518-SAFS-303TT
Category - SAFS 4-Bolt Steel Housing Pillow Blocks (22200K/2300K Adapter Mount Bearing)
Description - SP4B518-SAFS-303TT
Shaft Size (inch) - 3.1875
Housing Number - 518
Housing Item Number - 044234 DODGE - SH4S-518-SAFS
Approximate Weight (lbs) - 44
Dimension of A With Triple-Tect Seal (Std.) inch - 6.14
Dimension of A With LER/ER Seal (Optional) inch - 5.63
Dimension of A With Auxiliary Seal (Optional) inch - 8
Overall Length (B) inch - 13.75
C (inch) - 3.88
Bolt to Bolt Minimum Distance (D min) inch - 10.5
Bolt to Bolt Maximum Distance (D max) inch - 11.5
E (inch) - 2.13
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.25
H (inch) - 1.63
Overall Height (J) inch - 7.75
K (inch) - 2.75
L (inch) ** - 3.69
Base to Center Height (M) inch - 4
P (inch) - 8.25
Q (inch) *** - 1.7
S (inch) **** - 0.19
W (inch) - 1.47
Z (inch) - 0.69

Notes :
* Complete Pillow Block Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Based on TRIPLE-TECT seals.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.
**** Non-expansion bearing offset from centerline. For Expansion Bearing S = 0.

***** Images are for representation purposes only
