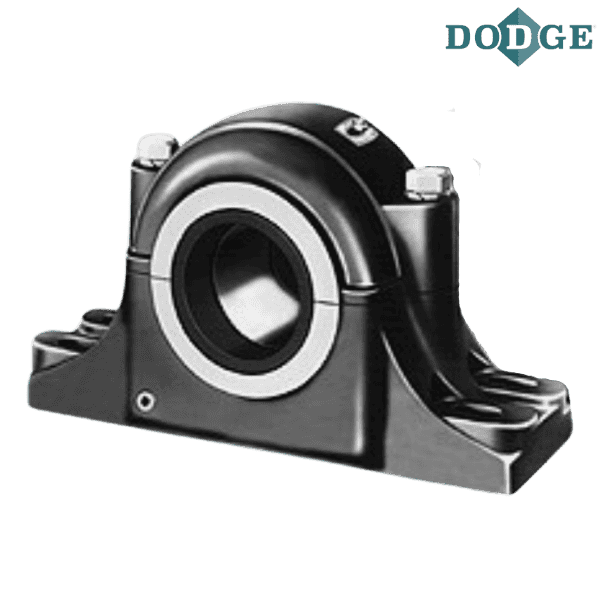

042432 DODGE - SP4B524-SAFS-403TT

Brand - DODGE
Item Number - 042432 DODGE - SP4B524-SAFS-403TT
Category - SAFS 4-Bolt Steel Housing Pillow Blocks (22200K/2300K Adapter Mount Bearing)
Description - SP4B524-SAFS-403TT
Shaft Size (inch) - 4.1875
Housing Number - 524
Housing Item Number - 044235 DODGE - SH4S-524-SAFS
Approximate Weight (lbs) - 120
Dimension of A With Triple-Tect Seal (Std.) inch - 8.03
Dimension of A With LER/ER Seal (Optional) inch - 7.44
Dimension of A With Auxiliary Seal (Optional) inch - 8.89
Overall Length (B) inch - 16.5
C (inch) - 4.75
Bolt to Bolt Minimum Distance (D min) inch - 13.25
Bolt to Bolt Maximum Distance (D max) inch - 14.5
E (inch) - 2.75
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.5
H (inch) - 1.75
Overall Height (J) inch - 10.25
K (inch) - 3.66
L (inch) ** - 4.59
Base to Center Height (M) inch - 5.25
P (inch) - 11.5
Q (inch) *** - 2.22
S (inch) **** - 0.19
W (inch) - 1.84
Z (inch) - 1

Notes :
* Complete Pillow Block Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Based on TRIPLE-TECT seals.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.
**** Non-expansion bearing offset from centerline. For Expansion Bearing S = 0.

***** Images are for representation purposes only
