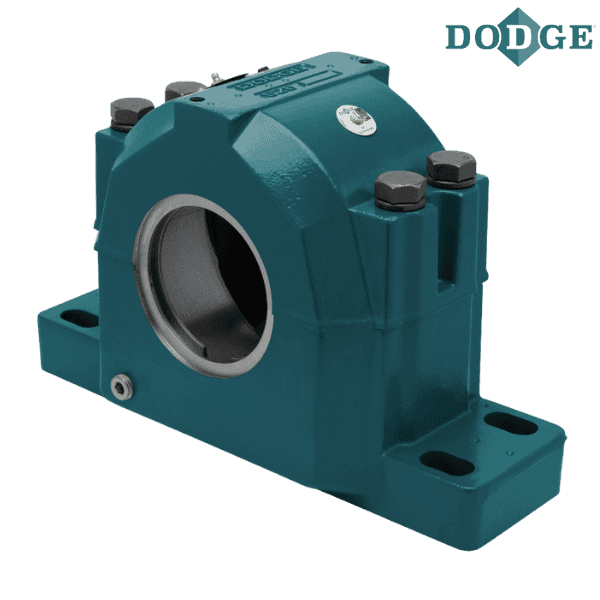

042438 DODGE - P4B530-USAF-503TT

Brand - DODGE
Item Number - 042438 DODGE - P4B530-USAF-503TT

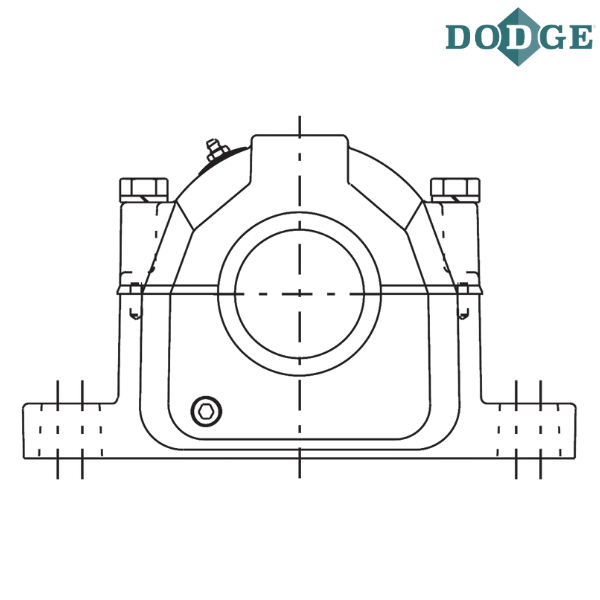

Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Open End Housing)

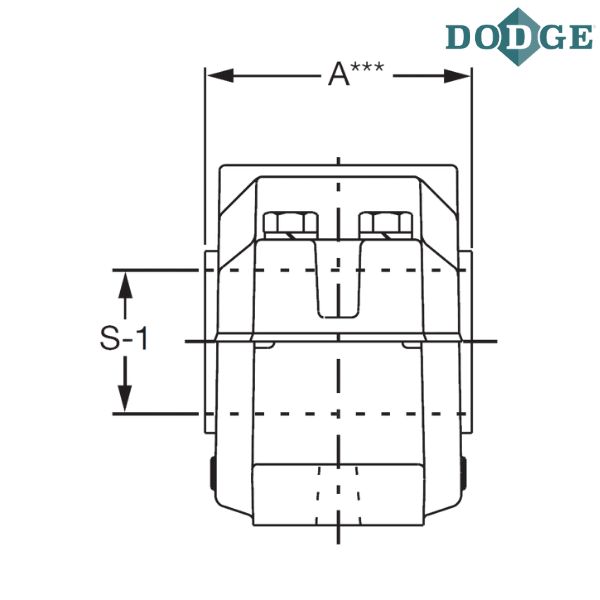

Shaft Diameter (S-1) inch - 5.1875
Description - P4B530-USAF-503TT
Housing Item Number - 044203 DODGE - H4S-530-USAF
Bearing Item Number - 422019 DODGE - BRG22230KC3
Dynamic Capacity (C) lbf - 228000
Maximum RPM (Grease) - 1600
SNW Item Number - 043618 DODGE - SNW30X503
TRIPLE-TECT Seal Item Number - 043558 DODGE - 58TT503
LER Seal Item Number ** - 042530 DODGE - 58LER503
End Cover Item Number - 040713 DODGE - EC58

Notes :
P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
503 - 5 3/16”
TT - TRIPLE-TECT
H4S - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

** LER seal is manufactured from Steel.

*** Images are for representation purposes only
